Cambium X7-35X WiFi 7 Indoor Access Point ক্যাম্বিয়াম ওয়াইফাই ৭  রাউটার

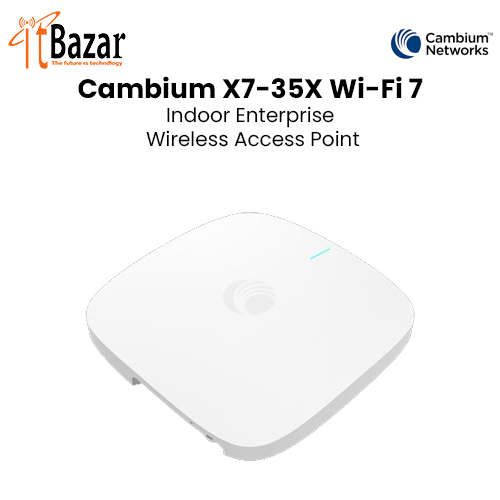

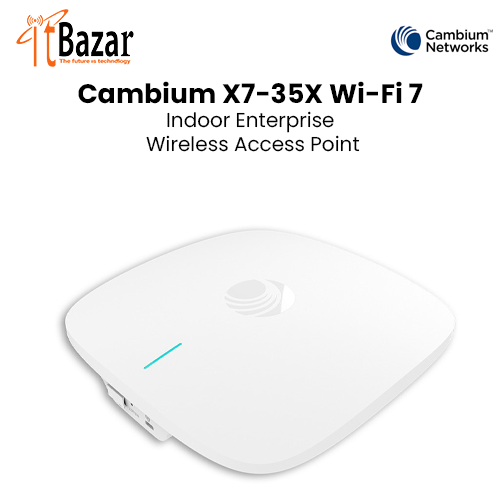

X7-35X Wi-Fi 7 Indoor Enterprise Wireless Access Point

The Cambium Networks X7-35X Wi-Fi 7 Indoor Access Point (AP) is designed to deliver cutting-edge performance and flexibility at a price point suitable for any market. Power your network with the latest Wi-Fi technology, without breaking the bank.

X7-35X Wi-Fi 7 Indoor Access Point

Access Point Specifications

Radios 2.4 GHz 2x2:2 with 802.11 b/g/n/ax/be

5 GHz 2x2:2 with 802.11 a/n/ac/ax/be

6 GHz 2x2:2 with 802.11 ax/be

BLE and Zigbee Built-in BLE or 802.15.4 radio

Max Transmit power 20 dBm with the integrated 5 dBi omnidirectional antenna gain

*Matter and Thread support (*Will be supported in future releases)

Supported data

rates

802.11be: 7.3 to 5765 Mbps

802.11ax: 7.3 to 2402 Mbps

802.11ac: 6.5 to 1733 Mbps

802.11n: 6.5 to 300 Mbps

802.11a/g and a: 6 to 54 Mbps

802.11b: 1 to 11 Mbps

Max PHY Rate 2.4 GHz: 574 Mbps

5 GHz: 2882 Mbps

6 GHz: 5765 Mbps

Antenna Omnidirectional internal antennas (Peak gain)

2.4 GHz: 5 dBi

5 GHz: 6 dBi

6 GHz: 6 dBi

BLE and Zigbee: 5 dBi

Maximum Radio Tx

Power* (combined

Tx power across all

Tx chains)

2.4 GHz: 24 dBm, max EIRP: 29 dBm

5 GHz: 25 dBm, max EIRP: 31 dBm

6 GHz: 25 dBm, max EIRP: 31 dBm

MIMO Support 2x2 (2.4 GHz, 5 GHz, and 6 GHz) SU-MIMO

2x2 (2.4 GHz, 5 GHz, and 6 GHz) MU-MIMO both in UL and DL direction

USB Interface 1 USB 2.0 type A port, max 1.5 W power supply

Ethernet Interface 1 100 Mbps/ 1 Gbps / 2.5 Gbps PoE port

Power Max power consumption 25.5W (802.3at)

Typical power consumption with BLE / 802.15.4 radio enabled: 10.6W

LLDP power negotiation support

Dimensions 209.6 mm x 209.6 mm x 45 mm

8.25 in x 8.25 in x 1.77 in

Weight Weight: 935 gm (2.06 lb)

Mount Options Drop ceiling T-bar, ceiling tile, 4" square electrical box, 4" round box, NA single gang box, EU single gang box, wall

mount

Physical Security Kensington lock slot

LEDs Multicolor status LED

Blue: Managed from cnMaestro

Green: Up and running, not managed from cnMaestro

Amber: Booting

Ambient Operation

Temperature

0ºC - + 50ºC

Storage

Temperature

-20ºC - + 70ºC

Operating Humidity 95% RH non-condensing
