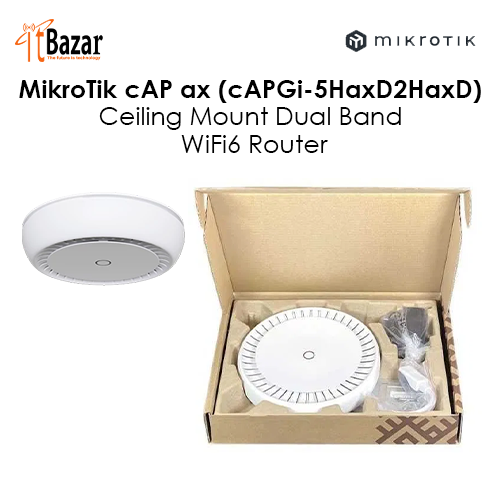

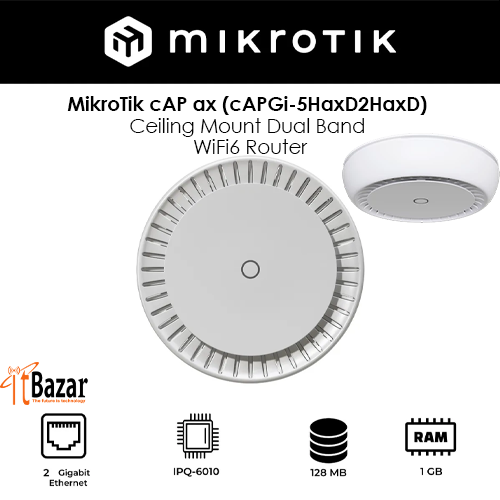

MikroTik cAP ax (cAPGi-5HaxD2HaxD) Ceiling Mount Dual Band WiFi6 Router

cAP ax

The best-selling ceiling access point is back – stronger than ever! A new generation of wireless greatness for your office, hotel, mall, or any other setups in crowded areas. Modern quad-core CPU, 1GB of RAM, 2x Gigabit Ethernet ports, PoE, Gen 6 802.11ax wireless, PSU – included!

Specifications

Details

Product code cAPGi-5HaxD2HaxD

Architecture ARM 64bit

CPU IPQ-6010

CPU core count 4

CPU nominal frequency auto (864 - 1800) MHz

Switch chip model IPQ-6010

RouterOS license 4

Operating System os

Size of RAM 1 GB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

IPsec hardware acceleration Yes

Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz 6

Wireless 2.4 GHz chip model QCN-5022

Wireless 2.4 GHz generation Wi-Fi 6

Wireless 5 GHz Max data rate 1200 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac/ax

Antenna gain dBi for 5 GHz 5.5

Wireless 5 GHz chip model QCN-5052

Wireless 5 GHz generation Wi-Fi 6

WiFi speed AX1800

Ethernet

Details

10/100/1000 Ethernet ports 2

Number of 1G Ethernet ports with PoE-out 1

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 18-57 V

Max power consumption 40 W

Max power consumption without attachments 11 W

Cooling type Passive

PoE in 802.3af/at

PoE in input Voltage 18-57 V

PoE-out

Details

PoE-out ports Ether2

PoE out Passive PoE up to 57V

Max out per port output (input 18-30 V) 600 mA

Max out per port output (input 30-57 V) 400 mA

Max total out (A) 600 mA

Total output current 0.4

Total output power 19.2

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP 20

Other

Details

CPU temperature monitor Yes

Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s -100

11MBit/s -94

6MBit/s 24 -96

54MBit/s 21 -80

MCS0 24 -96

MCS7 20 -75

MCS9 19 -70

MCS11 17 -67

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 24 -96

54MBit/s 21 -80

MCS0 24 -96

MCS7 20 -75

MCS9 19 -70

MCS11 17 -67
