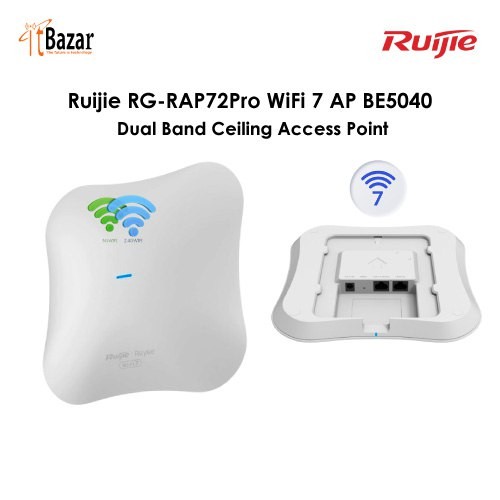

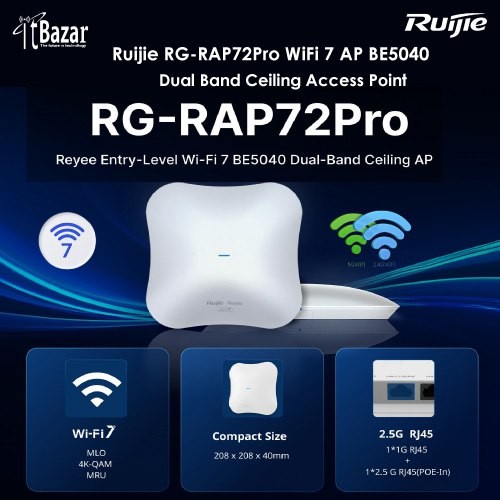

Ruijie RG-RAP72Pro WiFi 7 AP BE5040 Dual Band Ceiling Access Point
Inhouse product
Ruijie RG-RAP72Pro WiFi 7 AP BE5040 Dual Band Ceiling Access Point
Highlight Features
Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
Superior streaming with Wi-Fi 7's exclusive MLO feature
Compact design and easy installation
Enhanced data transmission with 4K-QAM for faster speeds
Ideal for integrating with enterprise switches to create a robust office network
Key Specifications
Product Information
Product Type
Product Type
- Ceiling
AP
Hardware Specifications
Wi-Fi Radio
Radio design
- Dual-radio
5 spatial streams
● 2.4 GHz: 2 x 2, MU-MIMO
● 5 GHz: 3 x 3, MU-MIMO
Maximum wireless data rate
- 5011
Mbps
6 GHz wireless data rate
- No
5 GHz wireless data rate
- 4323
Mbps
2.4 GHz wireless data rate
- 688
Mbps
Antenna
Antenna
- 2.4
GHz: 2 built-in omnidirectional antennas
5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
- 208
mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.) (excluding the
mounting bracket)
Color
- White
Weight
- ≤
0.75 kg (1.65 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
- 1
Number of 10/100/1000/2500BASE-T ports
- 1
Power Supply and Consumption
Power supply
- ● DC
power adapter
● PoE/PoE+
Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
- Yes,
one DC power connector (12 V, 2.5 A)
Dimensions of the DC connector
- Outer
diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Length: 10 mm (0.39 in.)
PoE budget
- No
Maximum power consumption
- 30 W
Environment and Reliability
Operating temperature
- 0°C
to 40°C (32°F to 104°F)
Mounting options
- Ceiling/Wall
IP rating
- IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
- 64
(2.4 GHz)
511 (5 GHz)
511 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
- 300
