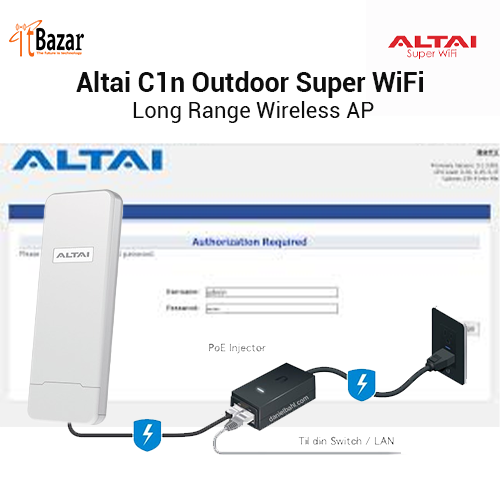

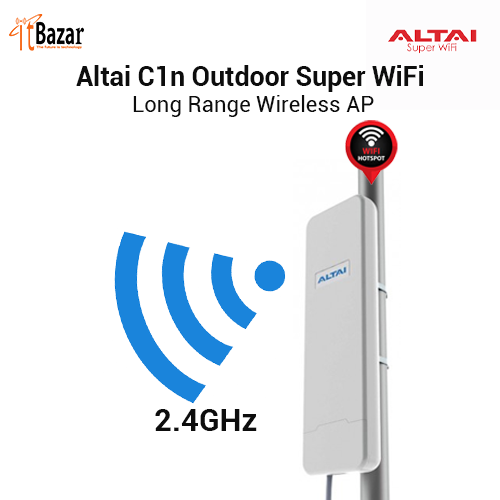

Altai C1n Super WiFi Ap Outdoor 2.4Ghz Directional WiFi Antennas
Inhouse product
Altai C1n Super WiFi Ap Outdoor 2.4Ghz Directional WiFi Antennas আলটাই সুপার ওয়াইফাই
The Altai C1n WiFi CPE/AP is designed as an
essential component in the Altai Super WiFi system
to extend outdoor Wi-Fi coverage into indoor areas
for broadband connectivity or use as an AP for
pico coverage.
The Altai C1n employs patented smart signal
processing algorithms and antenna design to
increase Wi-Fi signal strength (transmit and receive)
by as much as 16 dB in areas covered by an A8n
Super WiFi Base Station or A2 WiFi Access Point. It
can be installed exactly where the throughput is
required to boost up, and it allows the service
operator to increase the coverage range of an
A8n base station substantially and provides greater
flexibility and cost savings to Wi-Fi deployments.
Super Long Range Coverage
Max. LOS Access 800 m
Max. LOS CPE 4 km to A8-Ein(ac)
3 km to A3-Ei
Max. Data Rate 300 Mbps
Wireless Interface
802.11b/g/n (2x2) Radio
• Operating Mode AP/ CPE/Repeater
• Standard IEEE 802.11b/g/n
• Operating Frequency 2.400 – 2.485 GHz (Ch 1-13)
• Transmit Power 29 dBm (Max.)
26 dBm (Per Chain)
• Receiver Sensitivity (Typical)
802.11b 11 Mbps -91 dBm
1 Mbps -96 dBm
802.11g 54 Mbps -81 dBm
6 Mbps -95 dBm
802.11n HT20 -95 dBm
HT40 -92 dBm
• 16SSID
• WMM, 802.11h, 802.11k, 802.11r, 802.11v, 802.11w
• Passpoint (Release 2)
• Fast Roaming
• Auto Channel Selection and TX Power Control
• Bandwidth Control Per SSID/Client
• Altai AirFi™ Throughput Optimization
• 1+ N Redundancy
• Multi-AP Steering*
Antennas
Built-in 2.4 GHz Antenna 10 dBi Dual Slant ±45° Sector
Horizontal Beamwidth 70° (-3 dB)
Vertical Beamwidth 30° (-3 dB)
Front-to-back Ratio -20 dB (Max.)
Networking
• Switch (Bridge) and Gateway Mode
• IPv4/IPv6 Dual-Stack
• NAT
• DHCP Client/Server
• PPPoE Client
• Soft-GRE
• VLAN
• Multicast Rate Filter/IGMP Snooping
