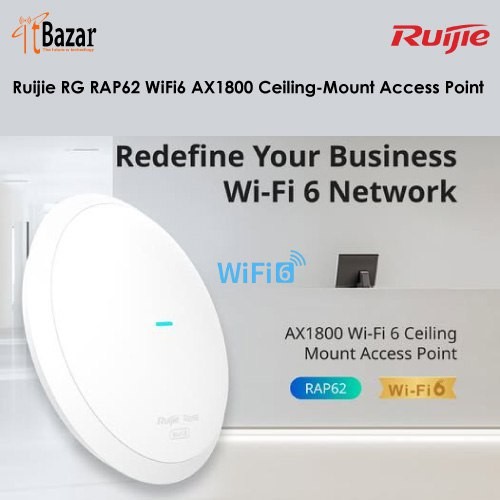

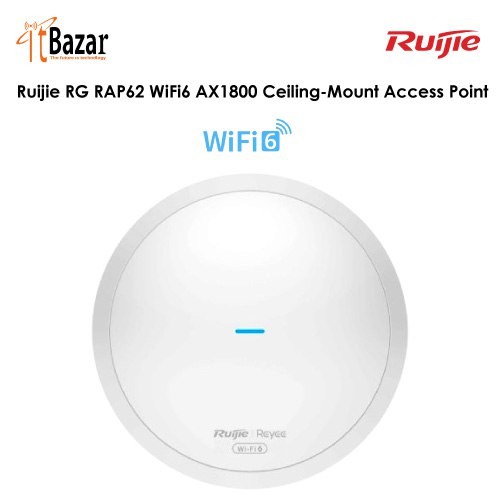

Ruijie RG RAP62 WiFi6 AX1800 Ceiling-Mount Access Point
Inhouse product
Ruijie RG RAP62 WiFi6 AX1800 Ceiling-Mount Access Point
Restaurant, Hotel, Office, etc.
Highlight Features
Gigabit wireless ceiling-mount AP with dual-radio performance
Support for Reyee Mesh and AI Wireless Optimization (WIO)
Easy installation, compact size
New circular aesthetics, more in line with the hotel decoration style
Powerful AP standalone portal via Ruijie Cloud
roduct Information
Product Type
Product Type
- Ceiling
AP
Hardware Specifications
Wi-Fi Radio
Radio design
- Dual-radio
4 spatial streams
● 2.4 GHz: 2 x 2, MU-MIMO
● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
- 1774
Mbps
6 GHz wireless data rate
- No
5 GHz wireless data rate
- 1201
Mbps
2.4 GHz wireless data rate
- 573
Mbps
Antenna
Antenna
- 2.4
GHz: 2 built-in omnidirectional antennas
5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)
- Ø175mm
x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket)
Color
- White
Weight
- ≤ 0.4
kg (0.88 lbs) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
- 1
Power Supply and Consumption
Power supply
- ● DC
power adapter
● PoE/PoE+
Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
- Yes,
one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
- Outer
diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Length: 10 mm (0.39 in.)
PoE budget
- No
Maximum power consumption
- 12.95
W
Environment and Reliability
Operating temperature
- 0°C
to 40°C (32°F to 104°F)
Mounting options
- Ceiling/Wall
IP rating
- IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
- 64
(2.4 GHz)
256 (5 GHz)
256 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
- 300
