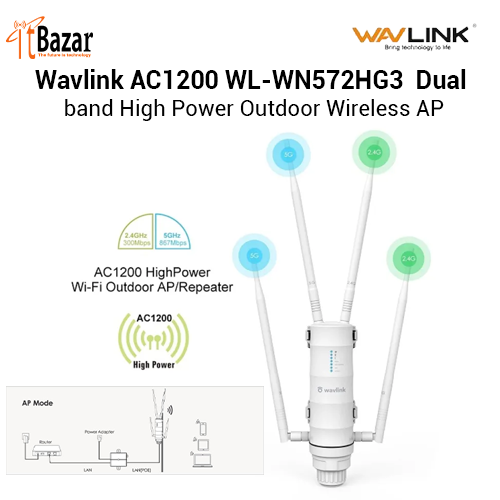

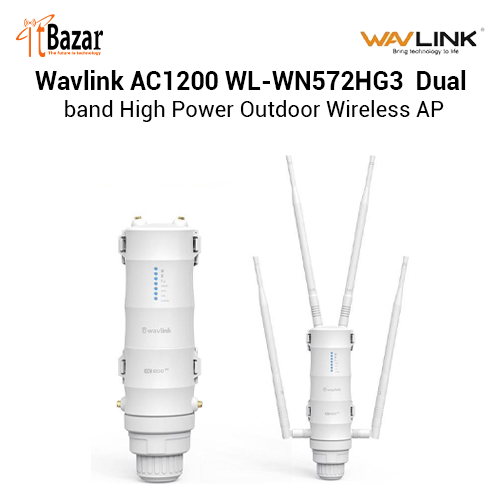

Wavlink AC1200 WL-WN572HG3  Dual-band High Power Outdoor Wireless AP

AERIAL HD4 – AC1200 Dual-band High Power Outdoor Wireless AP/Range Extender/Router with PoE and High Gain Antennas

Complies with IEEE 802 11a/b/g/n/ac standards

Dual-Band Speed up to 2.4GHz 300Mbps, 5GHz 867Mbps

Weatherproof RJ45 Connector, Integrated Passive Power over Ethernet (PoE)

Passive PoE Support for Flexible Deployment

Provides high performance at a Long-Range Links, depending on its antenna.

Features up to 1000mW of power and an enhanced receiver design

Robust weatherproof case withstands harsh outdoor conditions.

Maximum Security with WPA and WPA2

Support 3 LEDs Wireless Signal Strength

Build in lightning arrester (15kV ESD)

Strong Power for Multiple Outdoor Applications

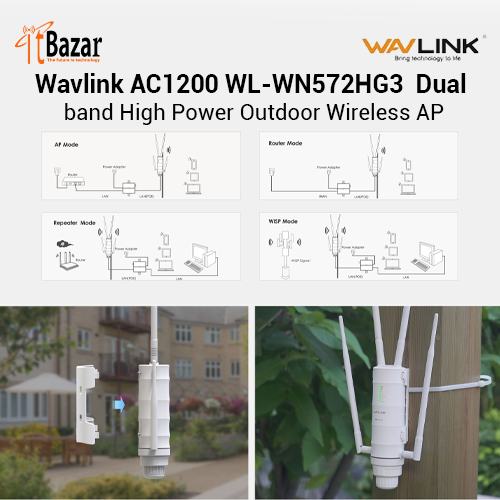

WN572HG3 is designed for WISP CPE and long distance wireless network, making it an ideal solution for small business offices and the home with outdoor networking requirements.

Industry-leading Hardware

Consists of four external antennas with 2.4G and 5G two frequency bands, making it possible to cover hard-to-reach dead zones; to deal with extreme weatherproof, it is made of waterproof, heat-resistant materials.

Super-fast Wireless AC Performance

Comes with next generation 802.11AC Wi-Fi technology, the extender operates on both 2.4GHz and 5GHz up to 1200 Mbps. It lets you keep more devices connected at the same time with the dual bands, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

TECHNICAL SPECIFICATIONS

Model

WN572HG3

Ports

1 x 10/100/1000Mbps WAN

1 x 10/100Mbps LAN

Buttons

1 x Reset button

LED

1 x Power

1 x WAN

1 x LAN

1 x WiFI

3 x Signal

Power Supply

DC24V / 0.5A Power over Ethernet ( Passive PoE)

Rated Voltage / Frequency

input:100-240 Va.c. 50/60Hz

DIMENSIONS

Unit Dimensions

180mm x 50mm x 50mm ( L x W x H )

WIRELESS

Standard

IEEE 802.11a/b/g/n/ac

Speed

IEEE 802.11ac: up to 867Mbps

IEEE 802.11n: up to 300Mbps

IEEE 802.11g: 54Mbps

IEEE 802.11b: 11Mbps

IEEE 802.11a: up to 54Mbps

Frequency band

2.4GHz, 5GHz

Wireless Security

WPA-PSK/ WPA2-PSK encryption

Antennas

4 x 7dBi Detachable Omni Directional Antennas

PACKAGE

In The Box

1 x Wi-Fi AP/Range Extender/Router

4 x Detachable Omni Antennas

1 x RJ45 Networking Cable

1 x Power Adapter

1 x POE Converter

1 x Main body holder

2 x Cable ties

1 x Screw fittings

1 x Quick Guide
