Grandstream Wall Mount Access Point GWN7661 WiFi6
Inhouse product
Grandstream Wall Mount Access Point GWN7661 WiFi6

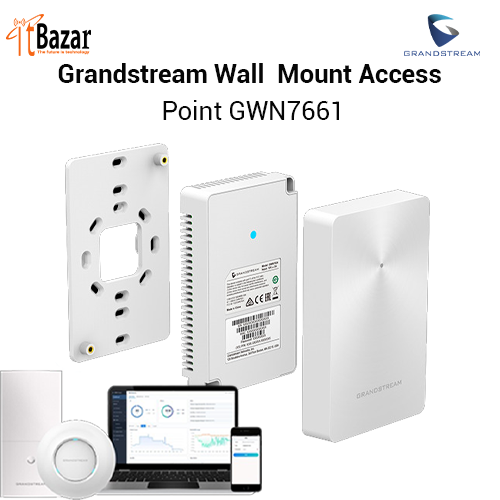

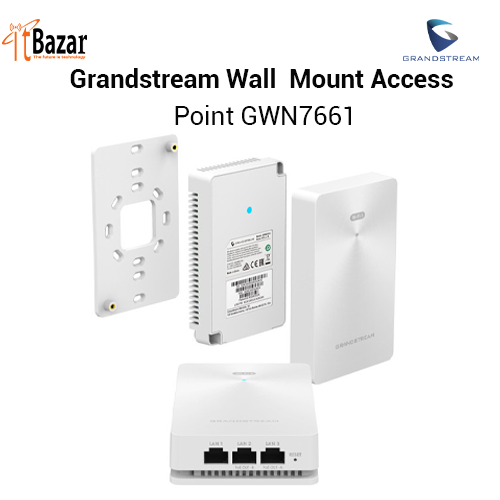

The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit
network port with PoE/PoE+.
1.77 Gbps wireless throughput and 4x Gigabit wireline ports
Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology
Supports up to 500+ concurrent Wi-Fi client devices
Self power adaptation upon auto detection of PoE or PoE+
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
Contact Sales
SPECS
Client Devices
500+
2.4G Throughput
573.5Mbps (2x2:2 MU-MIMO)
5G Throughput
1201Mbps (2x2:2 MU-MIMO)
6G THROUGHPUT
-
Range
Up to 100 Meters
Network Interfaces
1x 10/100/1000M uplink Ethernet port with PoE/PoE+, 2x 10/100/1000M Ethernet ports with PSE, 1x 10/100/1000M Ethernet port
PoE/PoE+
Supports 802.3az, PoE 802.3af/ 802.3at; PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Antennas
4 single band internal antennas
Wi-Fi and Security Systems
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions
135mm(L)x86mm(W)x38.5mm(H); Unit Weight: 185g
Mounting
Wall Mountable
