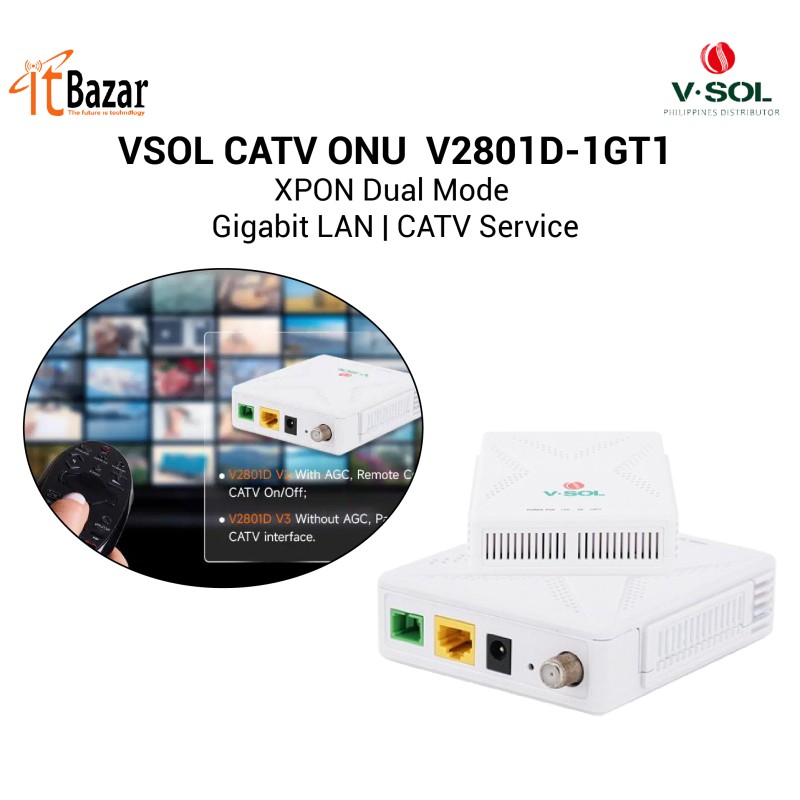

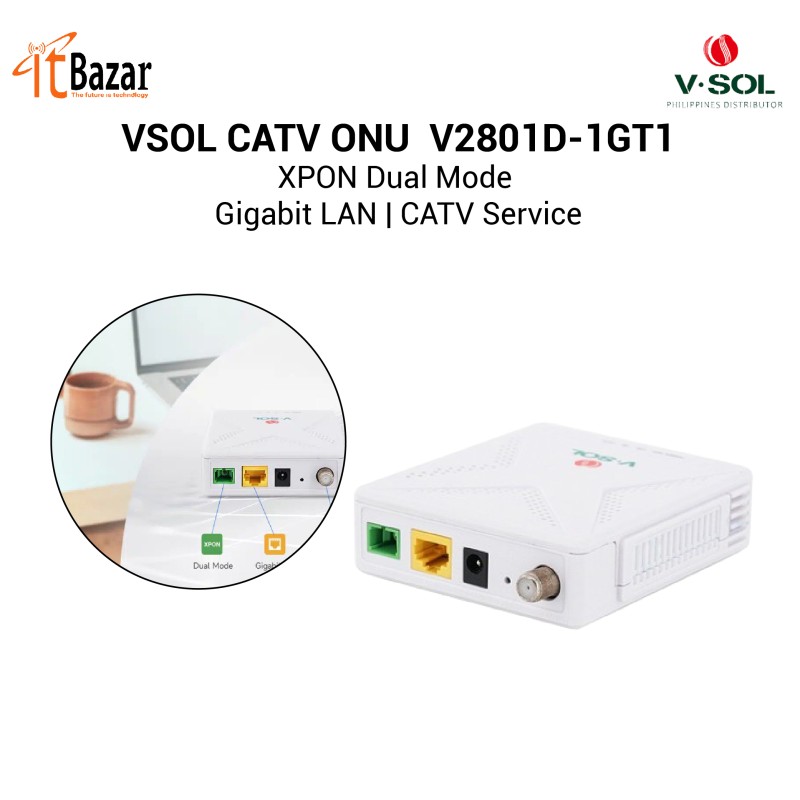

VSOL CATV ONU XPON V2801D-1GT1 1GE+CATV ONT
Inhouse product
VSOL CATV ONU XPON V2801D-1GT1 1GE+CATV ONT
V2801D-1GT1 (XPON 1GE+CATV ONT) is specially designed to meet the FTTO (office), FTTD (desktop), FTTH (home), TVandotherneeds of telecom operators. The ONT is based on a high-performance chip solution, supports dual-mode (EPON and GPON), andalsosupports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications. The ONT has high reliability and can be used in wide temperature environments. It also has powerful firewall functions and is easytomanage and maintain. It can provide QoS guarantee for different services. It conforms to international technical standards suchasIEEE802.3ah and ITU-T G.984.
PON mode XPON Dual Mode Uplink Mode Bridging and Routing Mode Well connect with OLTs of mainstreamCATV Support CATV Rmote management Standard • Support CTC OAM2.1 and 3.0• Support ITUT984.x OMCI Layer2 • 802.1D&802.1ad bridging • 802.1p CoS • 802.1Q VLAN Layer3 • IPv4 • DHCP Client/Server • PPPoE, NAT, DMZ, DDNSMulticast • IGMP v2/v3, IGMP snooping Security and Firewall • Prevent Rogue ONU • DDOS, Filtering Based on ACL/MAC/URLO&M Support EMS\WEB\Telnet\CLI andunifiednetwork management of VSOLOLT
Dimension 100mm×92mm×30mm（L×W×H）
Net weight 140g
Operating
condition
• Operating temp: -10 ~ +55°C
• Operating humidity: 5 ~ 95% (non-condensing)
Storing condition
• Storing temp: -40 ~ +70°C
• Storing humidity: 5 ~ 95% (non-condensing)
Power adapter DC 12V/0.5A, external AC-DC power adaptor
Power supply ≤4.2W
Interfaces 1GE+CATV
Indicators POWER, LOS, PON, LAN, CATV
