VSOL 4 Port EPON OLT V1601E04 10G UPLINK OLT
Inhouse product

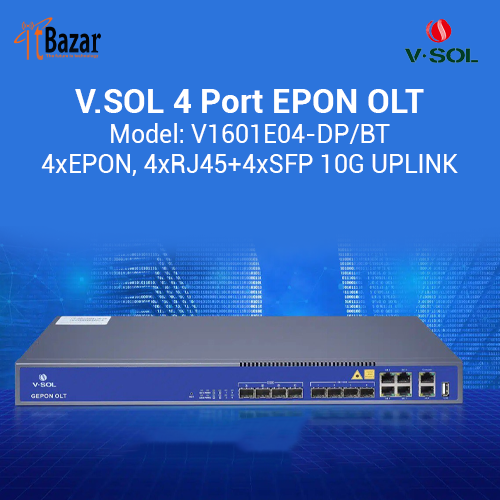

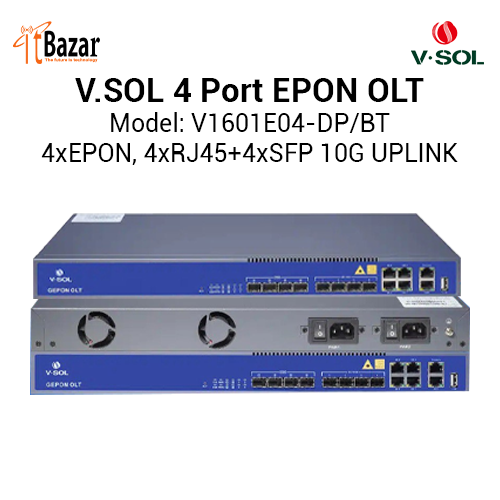

VSOL 4 Port EPON OLT V1601E04 10G UPLINK OLT
ভি সল ৪পোর্ট ইপন ও এল টি ১০জি আপলিংক
V1601E04-DP/BT
Layer3 4 Ports EPON OLT
২ বছর ওয়ারেন্টি
২ টি আলাদা পাওয়ার সাপ্লাই
২ বা তার থেকে বেশি ISP একি OLT তে চালাতে পারবেন
10GE SFP Uplink
Introduction:
V-SOL V1601E04-DP/BT series EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small,
convenient, flexible, easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT's can

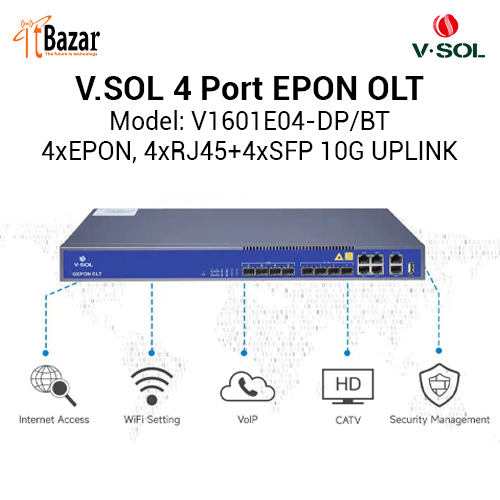

be used for "Triple-Play", VPN, IP Camera, Enterprise LAN and Internet service provider applications.
V1601E04-DP/BT provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT ports for downlink. It
can support overall 256 ONU's with 64 ONU's per PON port.
TechnicalSpecifications:
Management Ports
• 1*10/100BASE-T out-band port,
1*CONSOLE port, 1*USB port
PON Port Specification
• Transmission Distance: 20KM
• EPON port speed” Symmetrical
1.25Gbps
• Wavelength: TX-1490nm,
RX-1310nm
• Connector: SC/UPC
• Fiber Type: 9/125μm SMF
Management Mode
• SNMP/Telnet/CLI/WEB/SSH v2
Management Function
Layer 2 Feature
• 16K MAC address
• Support port VLAN
• Support 4096 VLANs
• Support VLAN tag/Un-tag, VLAN
transparent transmission, QinQ
• Support VLAN Translation: 2K
ingress & 1k egress
• Support IEEE802.3d(LACP): 128
groups
• Support RSTP, MSTP
• QoS based on port, VID, TOS
and MAC address
• IEEE802.x flow control
• Support ACL: 2K Share in and
out
• Port stability statistic and
monitoring;
• Support P2P Function
Multicast
• IGMP snooping
• Support 8K L2 multicast
• Support 8K L3 multicast
DHCP
• DHCP server
• DHCP relay
• DHCP snooping
• Fan Group Control;
• Port Status monitoring and configuration
management;
• Online ONU configuration and
management;
Layer 3 Features
• ARP proxy
• Static route
• Support Host Route(9K IPv4 & 3K
IPv6)
• Support Network Route(6K IPv4 &
2K IPv6 )
• Support RIPv1/v2, OSPFv2/v3
• Support PPPoE+
