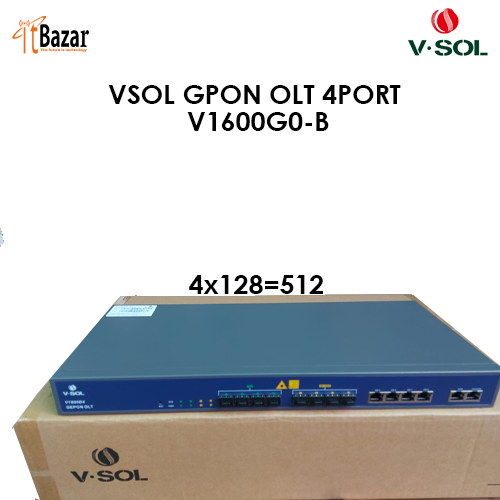

VSOL GPON OLT V1600G0-B 4PORT 10G Uplink
ভিসল জীপন ও এল টি। ১পোর্টে ১২৮ অনু আপ করা যাই। ৪পোর্টের ক্যাপাসিটি ৫১২।

The V1600G0-B is a pizza-box GPONOLTwith4 PON ports that meets flexible and fast FTTxaccess, suiting the scenarios such as sparse/remote/cost-sensitive area,smart industrial

park, commercial building and FTTM, etc.

Highlights

• Compact design, meets various application

scenarios

Supports the deployment in diverse scenarios including

low density areas, remote areas, sparsely-populated

areas and industry parks. Supports FTTM and sharing site/rack with wireless base

stations. • Small size and lightweight, easier to delivery

and install

Small size and lightweight, easy to transport and install. Supports multiple installation modes, like limited room

Carrier-class security protection, support dynamicrouting protocol RIP&OSPF, ensure the safe operationof network

Supports uplink redundancy protection including LACPSTP,RSTPand MSTP, and support RIP&OSPF protocol. Supports link

protection. • Lower TCO

Dramatically saves on investment fees in trunk fibers, pipeengineering, and facilities. Effectively reduce CapEx and OpEx.

Technical Specifications

Ordering Information:

• IGMP snooping

• 2048 IP Multicast Groups;

GPON Function

• Tcont DBA

• Gemport traffic

• In compliant with ITU-T984.x standard

• Up to 20KM transmission Distance

• Support data encryption, multi-cast, port

VLAN, separation, RSTP, etc

• Support ONT auto-discovery/link

detection/remote upgrade of software

• Support VLAN division anduser separation to avoid broadcast storm• Support power-off alarmfunction, easyfor link problemdetection• Support broadcasting stormresistancefunction

• Support port isolation betweendifferentports

• Support ACL and SNMPtoconfiguredata packet filter flexibly

• Specialized design for systembreakdown prevention tomaintainstable system• Support RSTP

Dimension (L*W*H)

• 442mm*229mm*43.6mmWeight

• Net weight of single power: 2.95kg• Gross weight of single power: 4.15kgPower Consumption• 35W

Working Temperature• -20°C ~+60°C

Storage Temperature• -40~+70°C

Relative Humidity

• 5~95% (non-condensing)

Management Function

• SNMP,Telnet,CLI,WEB,SSH v2; • Fan Group Control • Port Status monitoring and configuration management • Online ONTconfiguration and management • User management • Alarm management

Layer2 Switch

• 32K Mac address

• Support 4096 VLANs

• Support port VLAN

• Support VLAN tag/Un-tag, VLAN

transparent transmission

• Support VLAN translation and QinQ

• Support storm control based on port • Support port isolation

• Support port rate limitation

• Support 802.1D and 802.1W

• Support static LACP,Dynamic LACP

• QoS based on port, VID, TOS and MAC

address

• Access control list • IEEE802.x flowcontrol • Port stability statistic and monitoring

DHCP

• DHCP server,DHCP relay,DHCP snooping

• DHCP option82

Layer 3 Route

• ARP proxy

• 4096 hardware Host Routes,512 hardware Subnet Routes

• Support Radius,Tacacs+

• Support IP source guard

• Support static route ,dynamic route RIP

v1/v2,RIPng and OSPF v2/v3;

IPv6

• Support NDP; • Support IPv6 Ping,IPv6 Telnet,IPv6 routing; • Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol

type, etc; • Support MLD v1/v2 snooping(Multicast

Listener Discovery snooping)

Item V1600G0-B

Chassis Rack 1U 19Inch Standard Box

Uplink Port

QTY 4

RJ45(GE) 2

SFP(GE)/SFP+(10GE) 2

GPON Port

QTY 4

Physical Interface SFP Slots

Max splitting ratio 1:128

Management Ports

1*10/100/1000BASE-T out-band port, 1*CONSOLEport, 1*USB2.0

Backplane Bandwidth (Gbps) 104

Port Forwarding Rate(Mpps) 47.616

PON Port Specification

Transmission Distance 20KM

GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength TX 1490nm, RX 1310nm

Connector SC/UPC

Fiber Type 9/125μm SMF

Supported PON module level Class B+, C, C+, C++, C+++ Management Mode EMS, WEB, SNMP, Telnet , CLI
