Inhouse product
Highlights
• Compact design, meets various application
scenarios

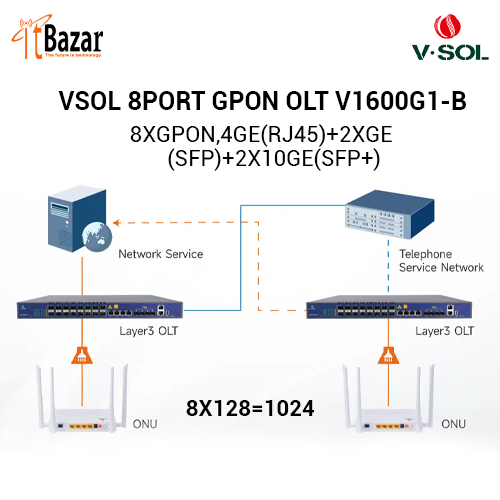

Supports the deployment in diverse scenarios including
low density areas, remote areas, sparsely-populated
areas and industry parks. Supports FTTM and sharing site/rack with wireless base
stations. • Small size and lightweight, easier to delivery
and install
Small size and lightweight, easy to transport and install. Supports multiple installation modes, like limited room
space,basement, low-voltage room and small rack or cabinet.
Carrier-class security protection, support dynamicrouting protocol RIP&OSPF, ensure the safe operationof network
Supports uplink redundancy protection including LACPSTP,RSTPand MSTP, and support RIP&OSPF protocol. Supports link
protection. • Lower TCO
Dramatically saves on investment fees in trunk fibers, pipeengineering, and facilities. Effectively reduce CapEx and OpEx.

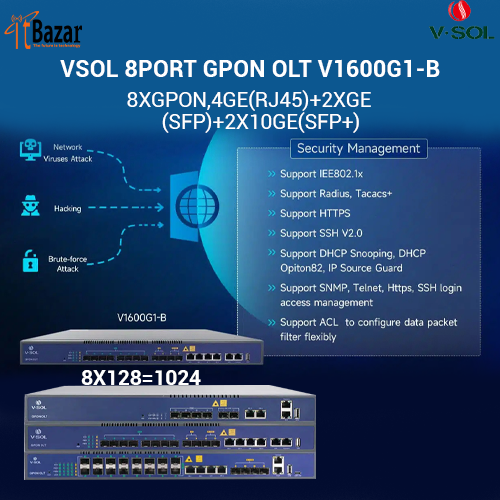

Chassis Rack 1U 19Inch Standard Box
Uplink Port
QTY 8
RJ45(GE) 4
SFP(GE) 2
SFP+(10GE) 2
GPON Port
QTY 8
Physical Interface SFP Slots
Max splitting ratio 1:128
Management Ports 1*10/100/1000BASE-T out-band port, 1*CONSOLEport, 1*USB2.0Backplane Bandwidth (Gbps) 104
Port Forwarding Rate(Mpps) 68.448
PON Port Specification
Transmission Distance 20KM
GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125μm SMF
Supported PON module level Class B+, C, C+, C++, C+++ Power supply
AC Working Voltage Range: 100~240V, Rated Voltage: 110V/220VDC Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60VManagement Mode EMS, WEB, SNMP, Telnet , CLI
