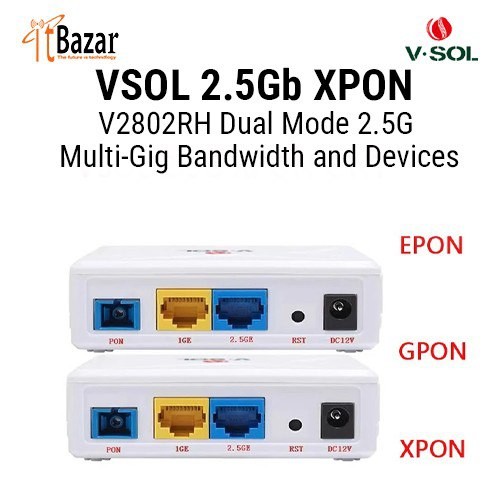

VSOL 2.5Gb XPON ONU V2802RH Dual Mode
Inhouse product
VSOL 2.5Gb XPON ONU V2802RH Dual Mode
2.5G Multi-Gig Bandwidth and Devices
1*2.5GbE+1GE ONT
Model: V2802RH
Spec: 1*XPON+1*2.5GE+1*GE

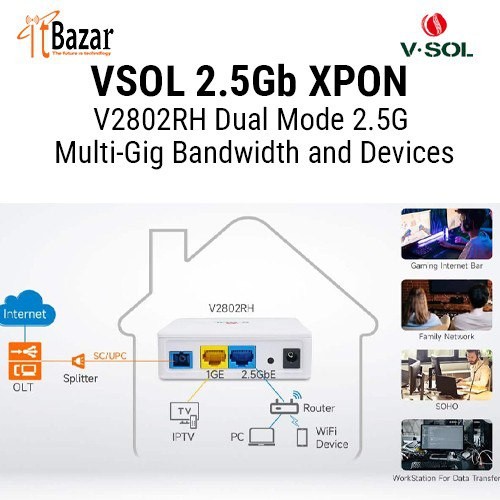

Upgrade to a Super-Fast, Futuristic Network
VSOL 2.5GbE XPON ONT | V2801RH/V2802RH
Simple Plug and Play for Internet AccesS
|
Hardware Parameter |
|
|
Dimension |
100mm*92mm*29.5mm(L*W*H) |
|
Net weight |
0.13KG |
|
Operating condition |
Operating temp: –10 ~ +55°C |
|
Storing condition |
Storing temp:-40~+70℃ |
|
Power adapter |
DC 12V, 0.5A, external AC-DC power adaptor |
|
Interfaces |
1*2.5GbE+1*GE(Option for V2802RH) |
|
Indicators |
POWER, PON, LOS, WAN, LAN1, LAN2 |
|
|
|
|
○ Interface parameter |
|
|
PON interface |
·
1 XPON port(EPON PX20+ & GPON Class B+) ·
SC single mode, SC/UPC connector ·
TX optical power: 0～+4dBm ·
RX sensitivity: -27dBm ·
Overload optical power: -3dBm(EPON) or -8dBm(GPON) ·
Transmission distance: 20KM ·
Wavelength: TX 1310nm, RX1490nm |
|
LAN interface |
1*2.5GbE+1*GE(Option), Auto-negotiation RJ45 connectors |
|
Button |
Reset |
