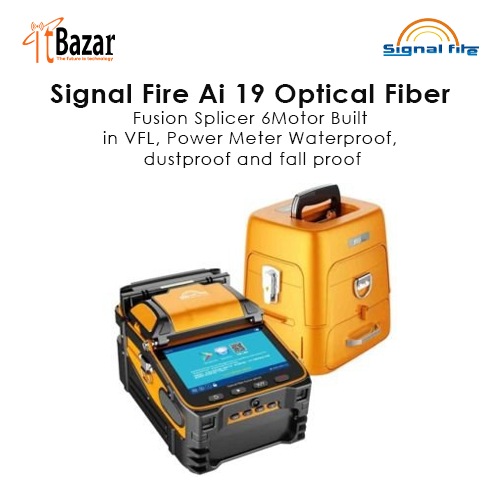

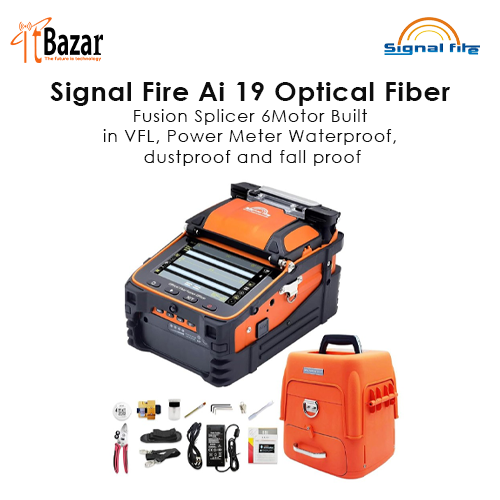

Signal Fire Ai 19 Optical Fiber Fusion Splicer 6Motor Built in VFL, Power Meter
Inhouse product
Signal Fire Ai 19 Optical Fiber Fusion Splicer 6Motor Built in VFL, Power
Meter
#চাইনিস মেশিনে জাপানি ফ্লেভার পেতে চান...??
তাহলে #Signal Fire Splicer Machine #AI_9_ কিনুন।।
#এই মেশিনে আপনি কি কি পাচ্ছেন তা নিম্নলিখিত দেওতা হলো।
#Applicable Fibers SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655）
#Splice Loss 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
#Focus mode Auto focus
Fiber alignment Core/cladding alignment Manual
alignment
#splicing time 5 S（AI-9)
#heating time :（AI-9) 15 S
Fast heating function, heating time can be set
#Control technology Real-time control and
calibration of fusion ARC
Return loss Better than 60DB
#Fiber diameter Cladding Diameter 80-150μm，Coating Diameter 100-1000μm
#Fiber Cleave Length Coating
less than 250µm：8-16mmCoating less
m250-1000μm:16mm
Heat shrinkable tube 60mm、40mm
#Visual Fault Locator(AI-9)
Power:15mw,2hzflashing And Constantly Bright Mode
Tension Test Standard 2N
#Fiber holders Multi function holders，Applicable for SM, MM, bare fiber, pigtail,
rubber-insulated, multi fiber cable
Magnification 300 for X or Y view, 150 for X or Y
view
Screen 5.1 inch TFT color display
#Software upgrade Mobile APP update,Turn on
Bluetooth sync to the machine
#Splicing Mode Normal / high precision splicing
Splicing record storage Synchronize to the phone,
the server to cloud storage unlimited
#Built-in battery 7800 mA high-capacity lithium
battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times
#Power supply Input AC100-240V 50 / 60HZ, output
DC13.5V / 4.8A, the current power mode can be identified, real-time detection
of battery power
#Operating Conditions Temperature -15 ~ +50 ℃, humidity: <95%
RH (no condensation),Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s
lighting External
#Optical Power Meter(AI-9) Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm
Measuring Range:-70 ~ +6db Absolute
Error:<0.3db(-50dbm ~ +3dbm Range)
THE TOOLBOX
8. Battery press & remove. Easy to remove the
battery.
