VSOL REVERSE POE ONU V2808PD-ZG
Inhouse product
VSOL REVERSE POE ONU V2808PD-ZG
V2808PD-ZG(1*GPON+8FE(PD POE)ONT ) is specially designed to meet the FTTH, SOHO and other access requirements of telecom
operators. The ONT is based on a high-performance chip technology solution (ZTE) and supports functions such as Layer 2/Layer 3, which
can provide data services for carrier-grade FTTH applications.

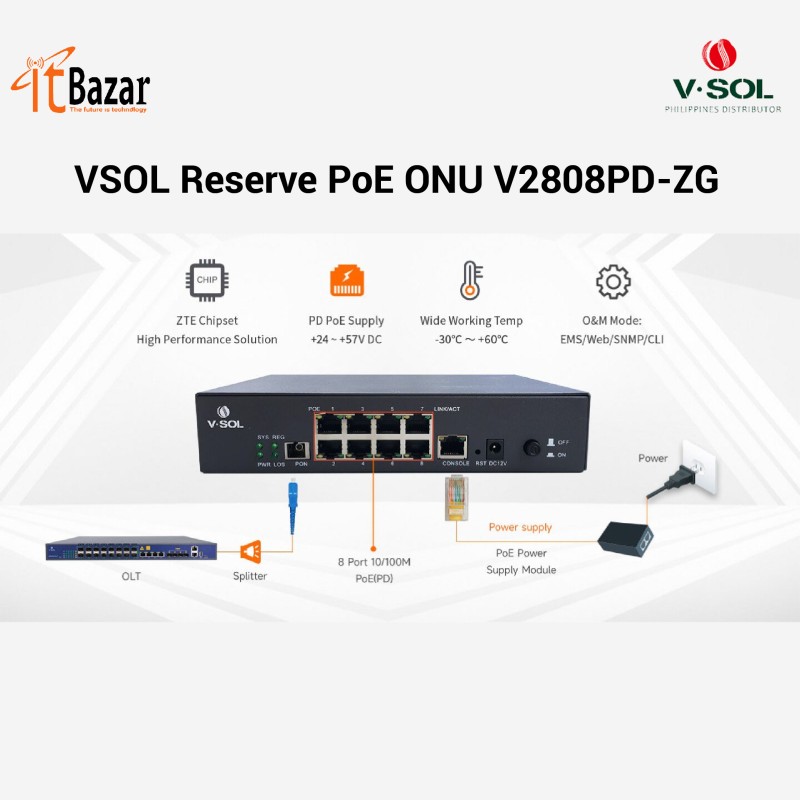

It supports the reverse POE function, which is suitable for scenarios where it is inconvenient to obtain electricity; and its shell is plastic and
supports waterproof features, so the ONT can be used outdoors.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It complies with international
standards such as ITU-T G.984.
Dimension 260mm x 216m x 97mm (L*W*H)
Net weight 1.4Kg
Operating condition Operating temp: -30 ~ +60°C
Operating humidity: 10~90% (non-condensing)
Storing condition Storing temp: -30 ~ +85°C
Storing humidity: 10 ~ 90% (non-condensing)
Proof level IP55
Power adapter DC 12V, 1A, external AC-DC power adaptor
POE Supply POE(PD): +24~+57V DC
Power supply ≤8W
Interfaces 8FE
Indicators PWR, LOS, REG, LINK/ACT, SYS
PON interface
• 1GPON port(GPON Class B+)
• SC single mode, SC/UPC connector
• TX optical power: 0～+4dBm
• RX sensitivity: -27dBm
• Overload optical power: -8dBm
• Transmission distance: 20KM
• Wavelength: TX 1310nm, RX1490nm
LAN interface 8 x 10/100Mbps Auto-negotiation RJ45 ports
