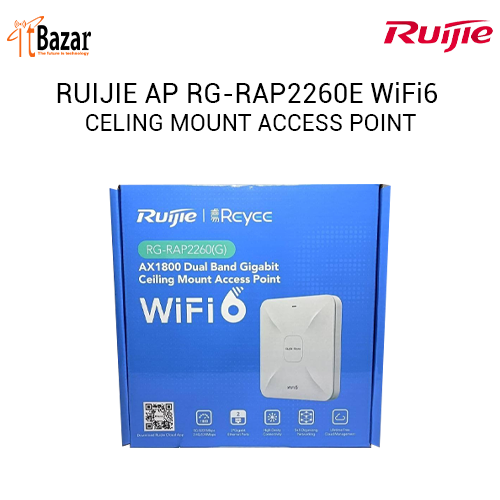

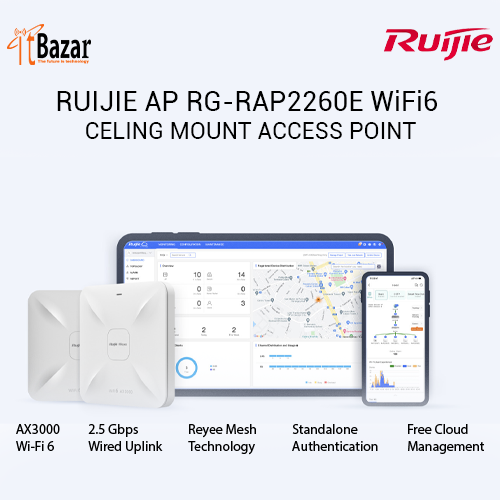

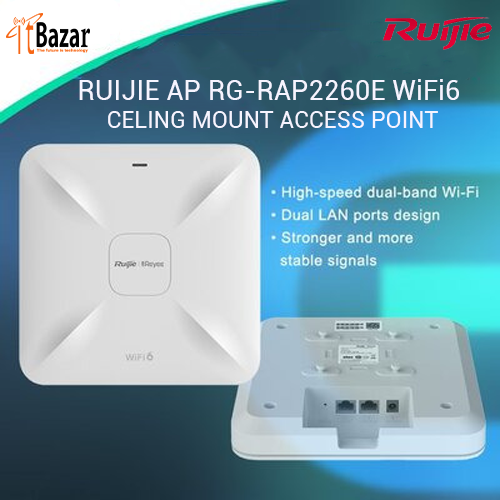

RUIJIE AP RG-RAP2260E WiFi6 CELING MOUNT ACCESS POINT

Sectorul hotelier, restaurante, centre comerciale, etc.

High-Speed Dual-band Wi-Fi

The device supports 2.4GHz and 5GHz dual-band communication, they can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience. RG-RAP2260E provide access rate of 800Mbps at 2.4GHz, 2402Mbps at 5GHz in total 3202 Mbps per AP.

Highlight Features

Construiește o rețea ultra-performantă cu rată de transfer wireless de 3202 Mbps.

Cu peste 500 de conexiuni clienți, asigură o performanță practică mai bună și pentru utilizatori.

Crește viteza de internet cu uplink de 2,5 Gbps.

AP suplimentar ușor de instalat cu tehnologia Reyee Mesh.

Configurare ușoară a rețelei Wi-Fi 6 în 3 minute cu Ruijie Cloud APP.

Specifications

Radio Dual-stream dual-band

Protocol Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n

Operating Bands

802.11b/g/n ：2.4G ~ 2.4835GHz

802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific)

Antenna Internal antennas (2.4G: 3dBi，5G: 3dBi)

Spatial Streams 2.4G 4x4MIMO  5G 4x4MIMO

Max Throughput

Up to 800Mbps at 2.4G

Up to 2402Mbps at 5G

3.202Gbp per AP

Modulation

OFDM：

BPSK@6/9Mbps

QPSK@12/18Mbps

16QAM@24Mbps

64QAM@48/54Mbps

DSSS：

DBPSK@1Mbps

DQPSK@2Mbps and CCK@5.5/11Mbps

MIMO-OFDM：

BPSK

QPSK

16QAM

64QAM

256QAM and1024QAM

OFDMA

Receive Sensitivity

11b：

-96dBm(1Mbps)，

-93dBm(5Mbps)，

-89dBm(11Mbps)

11a/g：

-91dBm(6Mbps)，

-85dBm(24Mbps)，

-80dBm(36Mbps)，

-74dBm(54Mbps)

11n：

-90dBm(MCS0)，

-70dBm(MCS7)，

-89dBm(MCS8)，

-68dBm(MCS15)

11ac：

20MHz ：-88dBm(MCS0), -63dBm(MCS9)

40MHz ：-85dBm(MCS0), -60dBm(MCS9)

80MHz ：-85dBm(MCS0), -60dBm(MCS9)

Wi-Fi 6：

80MHz ：-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)

Maximum output power of the transmitter

(single stream)

2.4GHz(2.4~2.4835GHz)：23dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz)：23dBm

(country-specific，comply with local laws)

Adjustable Power 1dBm

Dimensions 220mm×220mm×35mm (excluding mounting kits)

Weight 1.05kg (excluding mounting kits)

Service Ports

1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE;

1 10/100/1000M Base-T

Ethernet ports

Management Port NA

LED Indicator Single indicator (green light)

Power Supply

Power Consumption ≤ 25.4W

Environment

Operating temperature : 0°C～40°C

Storage temperature : -40°C～70°C

Operating humidity (non-condensing) : 5％～95％

Storage humidity : 5％～95％

Installation Ceiling/wall-mountable

Safety Standard GB4943, IEC 62368-1

EMC Standard GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035

Vibration Standard IEC61373

Radio Standard EN300 328, EN301 893

MTBF >400000H

Operating Mode AP mode and routing mode

WLAN

Maximum number of clients : 512

Recommended number of clients : 120

Up to 8 SSIDs

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Roaming Support Layer 2 and Layer 3 roaming

Security

Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Support Black List / White List：

Maximum 256 rules per SSID

Maximum 1024 rules per AP

Routing Support static IP address, DHCP, PPPoE Dial Up

Management and maintenance

Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud app

Support local management with web

Support remote management with Ruijie Cloud platform

Platform management features

Automatic RF adjustment via the platform

Unified configuration via the platform

Unified monitoring via the platform
