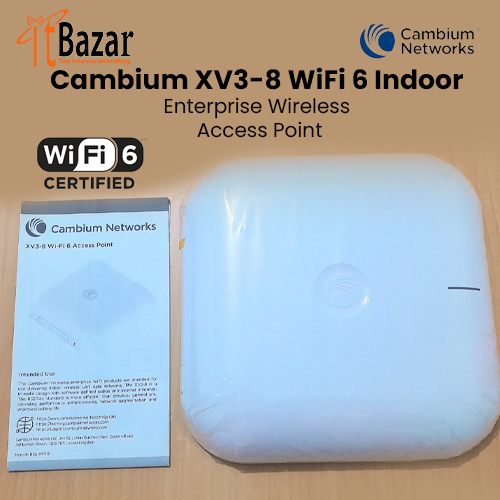

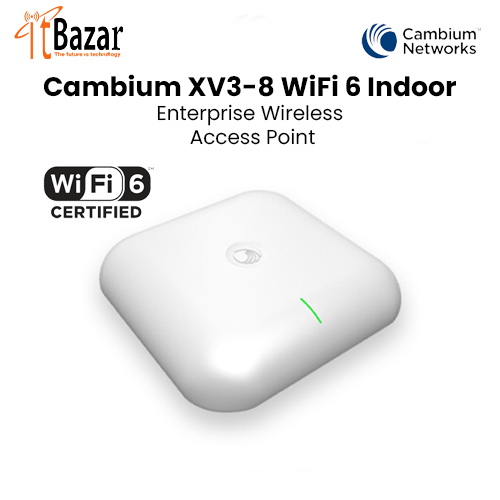

Cambium XV3-8 WiFi6 Indoor Enterprise Access Point

Enterprise-grade software-defined access point

High-density architecture reduces the equipment required while leveraging automation to deliver SLA. The XV3-8 Wi-Fi 6 Indoor Enterprise Wireless Access Point includes seamless roaming, fast roaming, automatic RF optimization and interference avoidance to automatically optimize performance to specific local needs. This Software-Defined 8×8 Multi-Radio AP is equipped with dedicated scanning radio and BLE, WPA3 secure public access, Application Control and 802.3bz Ethernet optimized for high density deployments.

CC Ch 1–11, 36–64, 100–144, 149–165

ISED Ch 1–11, 36–64, 100–116, 149–165

ETSI Ch 1–13, 36–64, 100–140

ROW (Individual country limits may apply)

Ch 1–14, 36–64, 100–144, 149–173

Radios 2.4 GHz: 802.11 b/g/n/ax, 4x4

5 GHz: 802.11 a/n/ac Wave 2/ax, 8x8

(or configure as two 4x4)

2.4/5 GHz scan, 1x1

BLE 4.1

Wi-Fi 802.11 a/b/g/n/ac Wave 2/ax

SSID

Security

WPA3, WPA2 (CCMP, AES, 802.11i), WPA2

Enterprise (802.1x/EAP), WPA PSK (TKIP),

WEP, Open

Max PHY

Rate

2.4 GHz: 1,147 Mbps

5 GHz: 4,804 Mbps

Ports 1 x IEEE 802.3 10/100/1000 Mbps

1 x IEEE 802.3bz 100/1000/2500/5000 Mbps

Auto sensing MDIX

1 x USB 3.0

Antenna

2.4 GHz: 5 dBi

5 GHz: 6.7dBi

2.4/5 GHz: sensor 5 dBi / 6.3 dBi

BLE 5 dBi

Max EIRP 2.4 GHz: 31 dBm

5 GHz: 36 dBm

Power Max power with USB/BLE, 35 W (802.3bt)

802.3at mode with USB/BT disabled

12 VDC power, 2.1 mm (.083 in)

barrel connector

Dimensions 235 mm x 235 mm x 42 mm

(9.25 in x 9.25 in x 1.65 in)

Weight 1,250 g (2.76 lbs)

Security Kensington lock slot

LEDs Multi-color status LEDs

Ambient Operating

Temperature

0ºC to 50ºC (32ºF to 122ºF)

Storage

Temperature -20ºC to 70ºC (-4ºF to 158ºF)

Humidity 95% RH non-condensing

MTBF 891k hours 50ºC and 2.379 million hours

at 25ºC

Mount Options Wall or ceiling, T-bar with included

locking bracket, ceiling tile plate

Certifications

(Compliance)

Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC,

IC, CE, EN 60601-1-2, EN 60950-1, IEC

62368-1 Safety, EN 60601-1-2 Medical, EN

61000-4-2/3/5 Immunity, EN 50121-1

Railway EMC, EN 50121-4 Railway

Immunity, IEC 61373 Railway Shock &

Vibration, UL 2043 Plenum,

EN 62311 Human Safety/RF Exposure,

WEEE & RoHS

Ac
