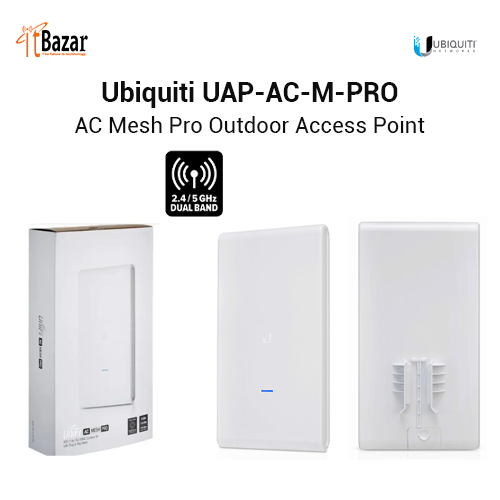

Ubiquiti UniFi UAP AC M PRO

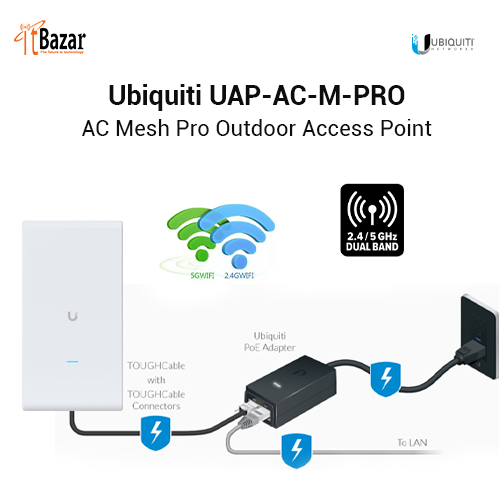

UAP-AC-M-PRO-US UniFi AC Mesh Wide-Area Dual-Band Access Point from Ubiquiti Networks users benefit from a wide coverage area reaching up to 600' along with enhanced data transfer rates of up to 1300 Mbps on the 5 GHz frequency. These enhanced data rates and coverage capabilities are supported by a 3x3 MIMO internal antenna configuration supporting multiple data paths for a more efficient end user network connection. Installation of the UAP-AC-M-PRO-US is simple as it comes 802.3af PoE compliant and includes a pole mounting kit. Once installed users can take advantage of 802.11ac Wi-Fi access with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band.

PRODUCT SPECIFICATIONS

Features:

Ubiquiti UAP-AC-M-PRO Description

Model No UAP-AC-M-PRO

Dimensions 343.2 x 181.2 x 60.2 mm

(13.51 x 7.13 x 2.37")

Ports (2) 10/100/1000 Ethernet

Antenna 3 Dualband

Wi-Fi Standards 802.11a/b/g/n/ac

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

UniFi

Dimensions 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")

Weight 633 g (1.40 lb)

Networking Interface (2) 10/100/1000 Ethernet Ports

Ports (2) 10/100/1000 Ethernet

Buttons Reset

Antennas 3 Dualband antennas

Wi-Fi Standards 802.11a/b/g/n/ac

Power Method 802.3af PoE

Power Supply PoE Injector 48VDC -0.5A Gigabit

Maximum Power Consumption 9W

Max TX Power 22 dBm

BSSID Up to Four per Radio

Power Save Supported

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certifications CE, FCC, IC

Mounting Wall/Pole (Pole Kit Included)

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

Advanced Traffic Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Traffic Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 100+

Supported Data Rates (Mbps)

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
