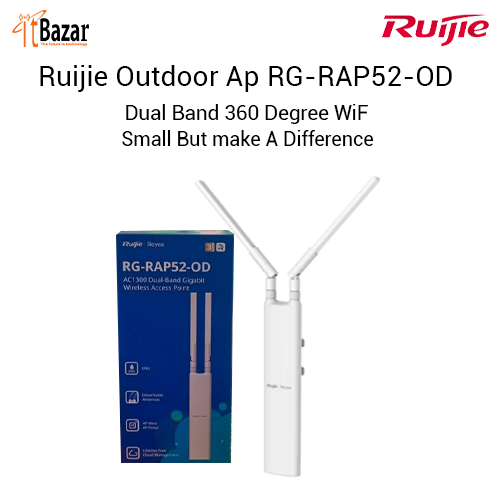

Ruijie Outdoor Ap RG-RAP52-OD Dual Band 360 Degree WiFi
রুইজি আউটডোর একসেস পয়েন্ট ,পারফেক্ট ফর ওয়াইফাই হটস্পট সল্যুশন ,

RG-RAP52-OD, Reyee Wi-Fi 5 AC1300 Dual-Band Outdoor Access Point

Highlight Features

AC1300 Wave 2 Outdoor Mesh Mini AP for Villas and Retail Businesses

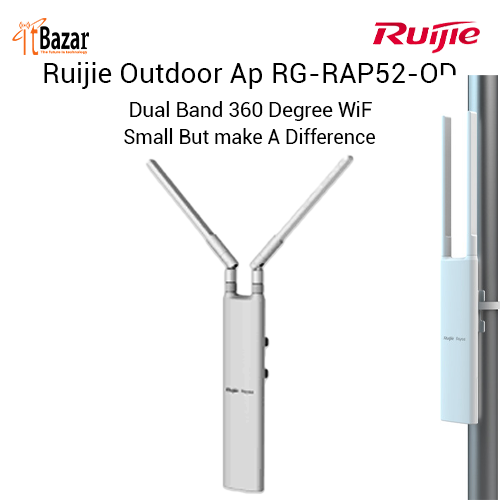

Wall or Pole Mounting to Fit in Any Location

IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability

Detachable Antennas for Customized Coverage Where Needed

Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features

Key Specification

Wi-Fi Protocol 360 Degree  ,Coverage 300-400Meter

Basic

Dimensions (W×D×H)

230 mm × 130 mm × 30 mm

(9.06 in. × 5.12 in. × 1.18 in. antennas not included)

Weight

0.29 kg (packages not included)

Wi-Fi Standards

Wi-Fi 5 (802.11ac)

MIMO

2.4 GHz, 2×2, MU-MIMO

5 GHz, 2×2, MU-MIMO

Max. Wi-Fi Speed

2.4 GHz: 400 Mbps

5 GHz: 867 Mbps

Channel Width

2.4 GHz: Auto/20/40 MHz

5 GHz: Auto/20/40/80MHz

Antennas 5

Antennas Type

External Omnidirectional

Antenna Gain  2.4 GHz: 4.5 dBi  5 GHz: 5.5 dBi

WAN Port  1×10/100/1000 Base-T

LAN Ports   3×10/100/1000 Base-T

Recommended Users  32

Power Supply DC 12V/1.0A

Operation Frequency Bands

802.11b/g/n: 2.400 GHz to 2.483 GHz

802.11a/n/ac: 5.150 GHz to 5.350 GHz

802.11a/n/ac: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz

country-specific restrictions apply

Transmit Power

General:

CE EIRP: ≤20dBm (2.4GHz)

≤27dBm (5GHz)

≤20dBm 2400~2483.5MHz(Bluetooth)

|Myanmar:

2400~2483.5MHz ≤ 20dBm(EIRP) ;

5150~5350MHz ≤ 23dBm(EIRP) ;

5470~5725MHz ≤ 30dBm(EIRP) ;

5725~5850MHz ≤ 30dBm(EIRP) ;

Receive Sensitivity

2.4 GHz:20MHz

802.11b: -91.5 dBm(1 Mbps)

802.11g: -88.5 dBm(6 Mbps), -71 dBm(54 Mbps)

802.11n: -88dBm(MCS0), -69 dBm(MCS7)

5 GHz:20MHz

802.11n: -92 dBm(MCS0), -71 dBm(MCS7)

802.11a: -89 dBm(6 Mbps), -74 dBm(54 Mbps)

802.11ac: -89dBm(MCS0), -65dBm(MCS8)

Operating Temperature

-10 °C to +40 °C (14 °F to 113 °F)

Wireless

OFDMA  Support

MU-MIMO   Support

Maximum Number of SSIDs-6

SSID Hiding  Support

Band Steering   Support

Guest Wi-Fi   Support

WPA/WPA2/WPA3

Support Roaming

Support  Blacklist

Support   Reyee Mesh

Mesh Pairing by Hardware

Mesh Pairing by Mesh Button

Mesh Pairing by Eweb

Wi-Fi Optimization

Support  Hardware

CPU  MT7621DA

Flash  16 MB

RAM/SDRAMn128 MByte

Features Mode Router

Access Point WISP

Repeater/MESH Port Mapping

Support Cloud Management Support
