MikroTik cAP LTE12 ax WiFi6 Dual Band Ap( মাইক্রোটিক ক্যাপ LTE১২ ওয়াইফাই ৬ ডুয়াল ব্যান্ড এপি )
Inhouse product
MikroTik cAP LTE12 ax WiFi6 Dual Band Ap( মাইক্রোটিক ক্যাপ LTE১২ ওয়াইফাই ৬ ডুয়াল ব্যান্ড এপি )
D53G-5HacD2HnD-TC&EG120K-EA
Dual-band Wi-Fi (2.4 GHz & 5 GHz)
A powerful ceiling access point that offers true Wi-Fi 6 mobility for your pop-up business - now with a CAT12 LTE modem

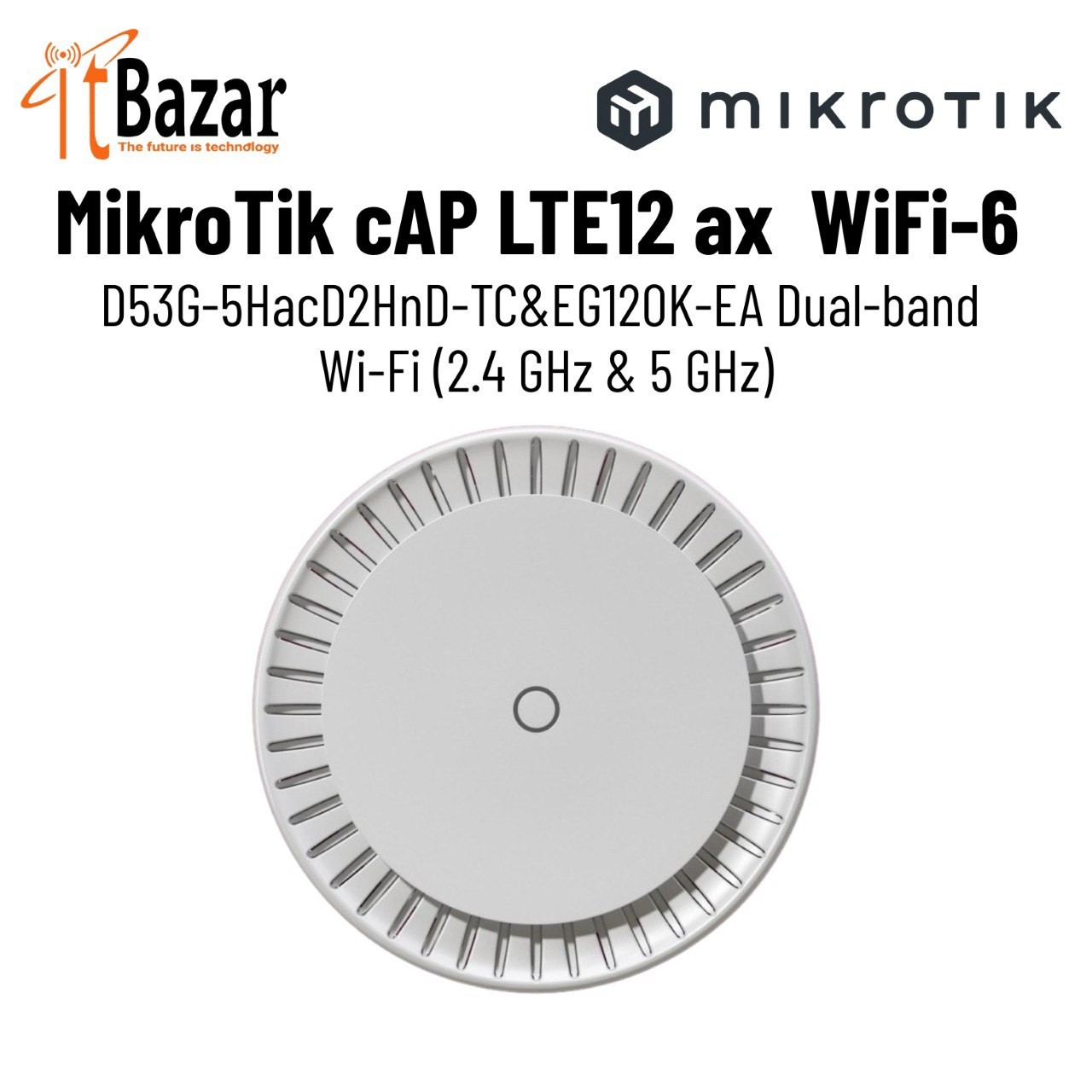

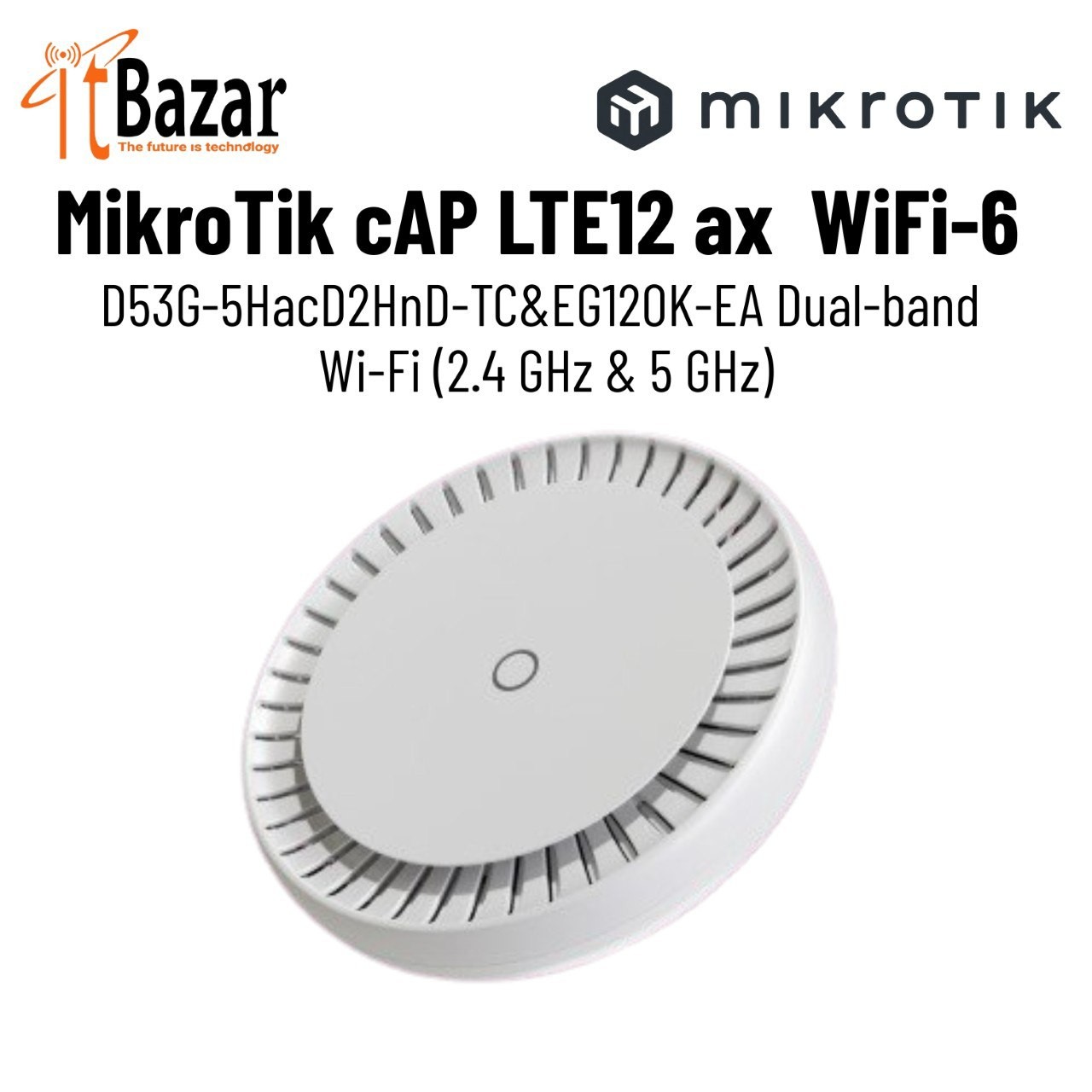

cAP LTE12 ax
When it comes to providing reliable wireless connectivity in busy business environments, you need a solution that is both powerful and discreet. Whether you’re running an open-air pop-up store, a festival food stand, or a cozy coffee shop in the park, you need a device that can withstand the challenges of busy, high-traffic areas. You need cAP LTE12 ax – with its fast, reliable mobile internet and incredible Wi-Fi 6 coverage for you and your clients!
Elevate Your Connectivity:
Literally and Figuratively
In bustling high-traffic spaces, traditional access points can face numerous obstacles - devices get knocked over, misplaced, or even stolen. The cAP offers a simple yet effective solution: mount your access point on the ceiling. Not only does this method physically elevate the device, but it also ensures optimal signal distribution, minimizes interference from obstacles, and reduces the risk of theft. Also, you’ll have fewer cables and devices in your workspace to worry about – it’s a win-win scenario!
More Than Just an Access Point
With a powerful quad-core ARM CPU running at 1.8 GHz, a gigabyte of RAM, and the extremely flexible RouterOS v7 at its core, the cAP LTE12 ax is far more than just a simple access point. It offers a range of advanced features, including:
Complex firewall rules
IPsec hardware encryption and Wireguard support
Advanced routing and multiple VPN tunnels
Support for remote work and file-sharing
Even some light BGP action!
This makes it an ideal solution for businesses that require secure, high-performance mobile connectivity in challenging environments.
Specifications
|
Details |
|
|
Product code |
cAPGi-5HaxD2HaxD&EG12-EA |
|
Architecture |
ARM 64bit |
|
CPU |
IPQ-6010 |
|
CPU core count |
4 |
|
CPU nominal frequency |
auto (864 - 1800) MHz |
|
Switch chip model |
IPQ-6010 |
|
RouterOS license |
4 |
|
Operating System |
OS7 |
|
Size of RAM |
1 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 50°C |
|
IPsec hardware acceleration |
Yes |
|
|
|
Powering
|
Details |
|
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
18-57 V |
|
Max power consumption |
34 W |
|
Max power consumption without attachments |
13 W |
|
Cooling type |
Passive |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
18-57 V |
PoE-out
|
Details |
|
|
PoE-out ports |
Ether2 |
|
PoE out |
Passive PoE up to 57V |
|
Max out per port output (input 18-30 V) |
0.6 A |
|
Max out per port output (input 30-57 V) |
0.4 A |
|
Max total out (A) |
0.6 A |
|
Total output current |
0.6 |
|
Total output power |
22.8 |
Mobile
|
Details |
|
|
3G Category |
R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
|
3G bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8
(900MHz) |
|
LTE Category |
12 (600Mbps Downlink, 150Mbps Uplink) |
|
MIMO DL |
4x4 |
|
MIMO UL |
1x1 |
|
LTE FDD bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7
(2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
|
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
|
TAC |
86056104 |
Wireless specifications
|
Details |
|
|
Wireless 2.4 GHz Max data rate |
574 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
|
Antenna gain dBi for 2.4 GHz |
6 |
|
Wireless 2.4 GHz chip model |
QCN-5022 |
|
Wireless 2.4 GHz generation |
Wi-Fi 6 |
|
Wireless 5 GHz Max data rate |
1200 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Antenna gain dBi for 5 GHz |
5.5 |
|
Wireless 5 GHz chip model |
QCN-5022 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
Ethernet
|
Details |
|
|
10/100/1000 Ethernet ports |
2 |
|
Number of 1G Ethernet ports with PoE-out |
1 |
Peripherals
|
Details |
|
|
Number of SIM slots |
1 Modem (Micro SIM) |
Other
|
Details |
|
|
CPU temperature monitor |
Yes |
|
Mode button |
Yes |
Certification & Approvals
|
Details |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |
