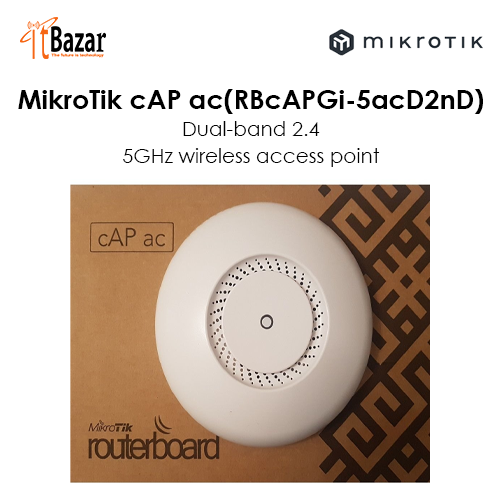

MikroTik cAP ac(RBcAPGi-5acD2nD) Celling Mount AP

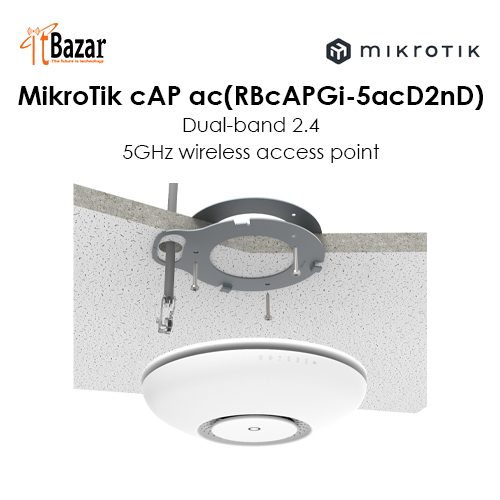

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.

- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

Specifications

Details

Product code RBcAPGi-5acD2nD

Architecture ARM 32bit

CPU IPQ-4018

CPU core count 4

CPU nominal frequency 716 MHz

Switch chip model IPQ-4018

Dimensions Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm

RouterOS license 4

Operating System RouterOS

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 50°C

IPsec hardware acceleration Yes

Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 300 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 2

Wireless 2.4 GHz chip model IPQ-4018

Wireless 2.4 GHz generation Wi-Fi 4

Wireless 5 GHz Max data rate 867 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac

Antenna gain dBi for 5 GHz 2.5

Wireless 5 GHz chip model IPQ-4018

Wireless 5 GHz generation Wi-Fi 5

WiFi speed AC1200

Ethernet

Details

10/100/1000 Ethernet ports 2

Powering

Details

Number of DC inputs 1 (PoE-IN)

Max power consumption 24 W

Max power consumption without attachments 12 W

Cooling type Passive

PoE in 802.3af/at

PoE in input Voltage 17-57 V

PoE-out

Details

PoE-out ports Ether2

PoE out Passive PoE up to 57V

Max out per port output (input 18-30 V) 500 mA

Max out per port output (input 30-57 V) 400 mA

Max total out (A) 500 mA

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP 20

Other

Details

Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 26 -100

11MBit/s 26 -94

6MBit/s 26 -96

54MBit/s 23 -78

MCS0 26 -96

MCS7 22 -73

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 26 -96

54MBit/s 21 -80

MCS0 26 -96

MCS7 20 -75

MCS9 18 -70
