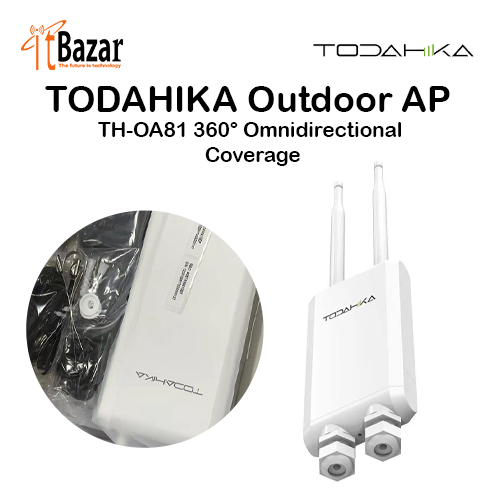

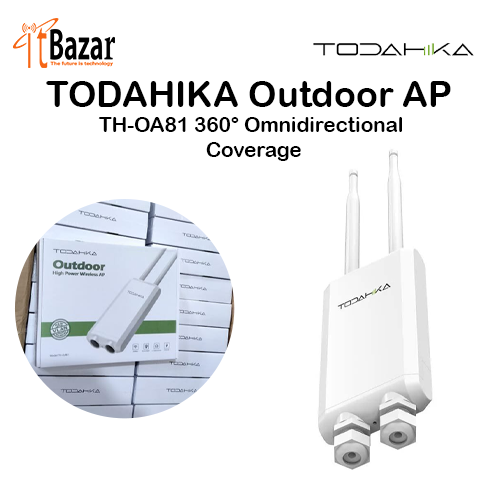

TODAHIKA Outdoor AP TH-OA81 360° Omnidirectional Coverage 300Mbps

TH-OA81 is an outdoor wireless high power wireless coverage AP with two external oxygen-free copper antennas and 360 omnidirectional coverage to meet the needs of various scenarios. It adopts QCA9531 chipset, comply with IEEE 802.11b/g/n standard, the Wi-Fi data rate is up to 300Mbps. It provides a cost-effective solution for outdoor wireless network applications. PoE power supply by combining your power and data connection into a single cable makes outdoor deployment simple and fast. It is with IP66 waterproof and dustproof enclosure design, wide temperature range to withstand all kinds of harsh outdoor use environment.

QCA9531 Chipset, 802.11b/g/n Support

High Power Wi-Fi Coverage AP 360° Omnidirectional Coverage

Adjustable transmission power from 0 to 30dBm/1000mw

AP Mode, Router Mode, WDS Repeater, Universal Repeater, access point

Outdoor stabilized enclosure with IP66 waterproof

Hardware Specification

Antenna

Wireless Standard

RF Parameters

Modulation Mode

Transmission Rate

Physical Ports

Indicator

Power

Power Consumption(Max)

IP Index

MTBF

Installation Way

Case

Physical Features

Working Environment

Qualcomm QCA9531: 650Mhz Industrial Grade CPU:

DDR: 64MB; Flash: 16MB;

PA Chipset: SKY65900 * 2; With machine:76+

External 2 5dBi Antennas

IEEE802.11b/g/n Standards

Output Power (Max): 1000mW(30dBm): |

Receiving Sensitivity (Max): -96dBm;

Frequency: 802.11b/g/n : 2.412GHz-2.484GHz

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps;

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps,

64-QAM@48/54Mbps; MIMO-OFDM: MCS 0-15

11b: 1, 2, 5.5, 11Mbps:|

11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;|

11n: MCSO-MCS15(20MHz and 40MHz Analog Bandwidth); |

20MHz: 144.4Mbps;

40MHz: 300Mbps

1*10/100Mbps WAN RJ45 Ethernet Port;2*10/100Mbps LANRJ45 Ethernet Port

Support 24V POE power supply

1*Reset Buttons /1*DC

WIFI/Power/Network port 3 signal strength indicators

Power Supply: 802.3af/at POE Power Supply(0-100m):

Power Adapter: 24V 0.5A POE Power Adapter(Configured)

<8W

Ip66

>250000H

Wall-mounted/Pole-mounted

Plastic Case (Imported ABS Material)

Size: 90mm*388.2mm

Working Temperature: -40 °C-55 C;

Storage Temperature: -40 C-70 C;

Working Humidity: 10%-90%RH Non-condensing;

Storage Humidity: 5%~90%RH Non-condensing
