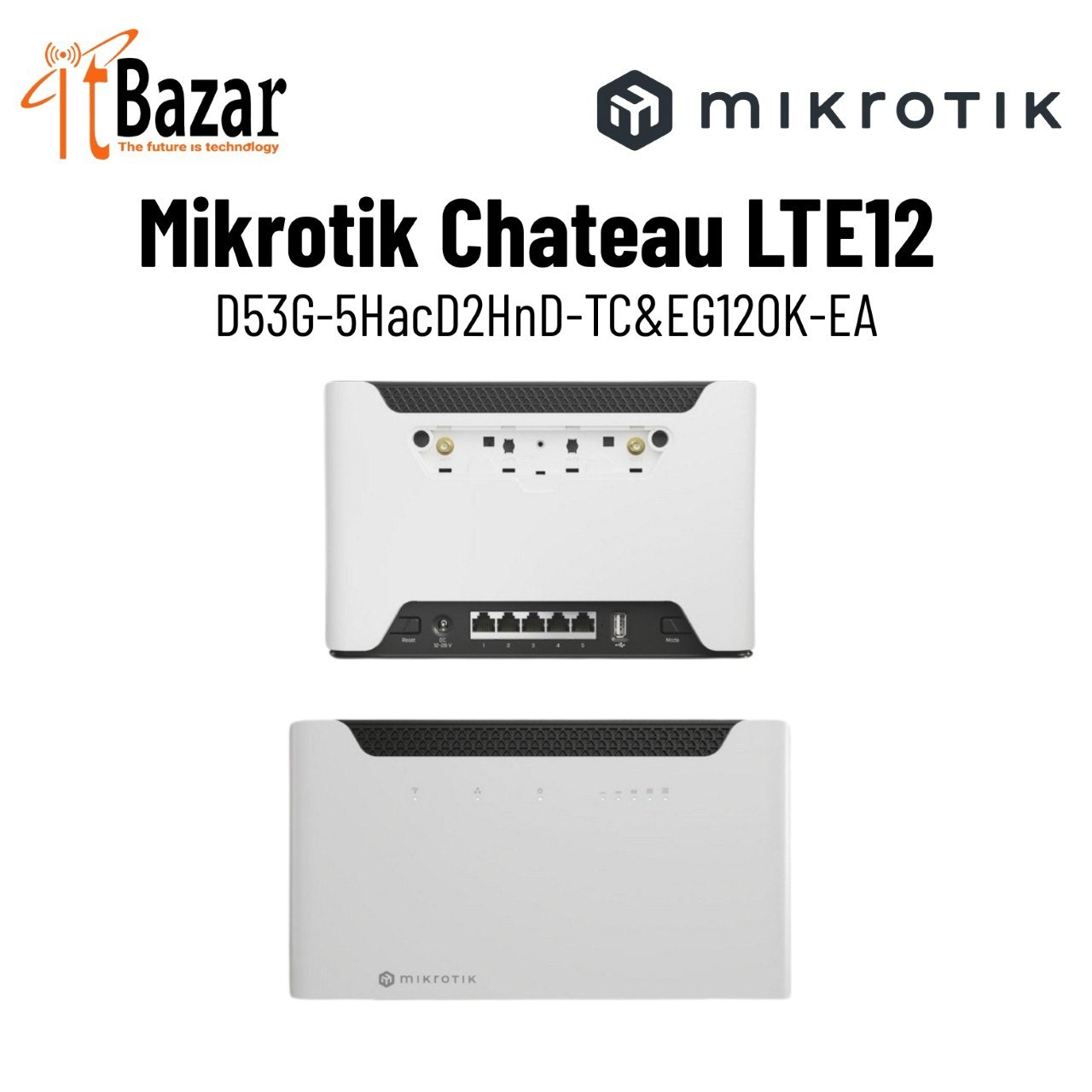

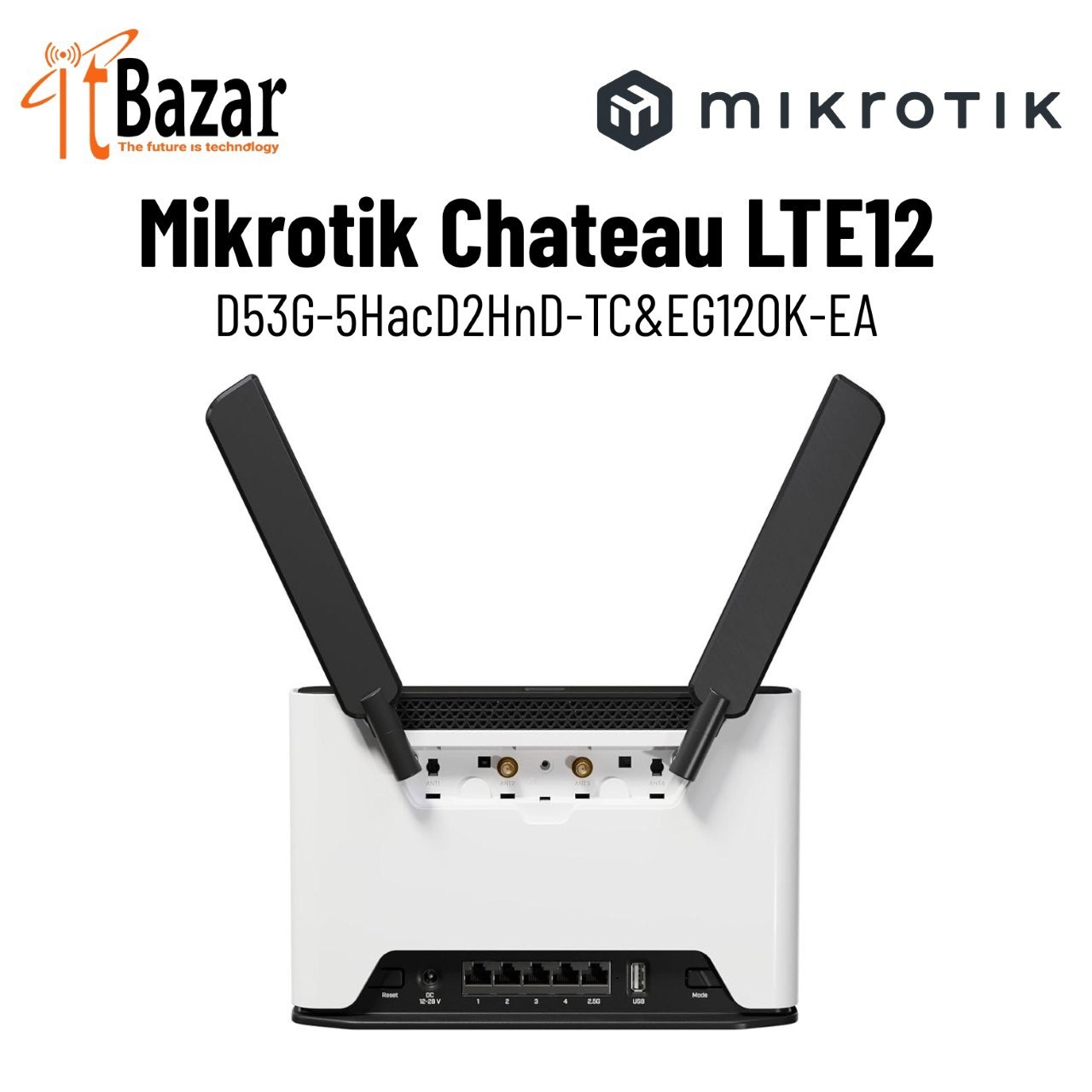

Mikrotik Chateau LTE12 D53G-5HacD2HnD-TC&EG120K-EA
Inhouse product
Mikrotik Chateau LTE12 মাইক্রোটিক চাটেও LTE১২
D53G-5HacD2HnD-TC&EG120K-EA
One router to delight them all – introducing the ultimate home AP with LTE support
Let’s face it – most of the standard issue access points can’t really satisfy the extremely diverse client base – they either lack features, users want more speed and higher gain, the price is too high or they look weird. We decided to take all the aspects that are important for most home users and create a single device that will make them happy – this is the MikroTik Chateau.
It is a high-speed, dual-band home access point with CAT12 LTE – for really fast Internet anywhere, anytime. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.
Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
Specifications
|
Details |
|
|
Product code |
RBD53G-5HacD2HnD-TC&EG12-EA |
|
Architecture |
ARM 32bit |
|
CPU |
IPQ-4019 |
|
CPU core count |
4 |
|
CPU nominal frequency |
448-896 (auto) MHz |
|
Switch chip model |
IPQ-4019 |
|
Dimensions |
240 x 156 x 44 mm |
|
RouterOS license |
4 |
|
Operating System |
OS7 |
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
IPsec hardware acceleration |
Yes |
|
|
|
Powering
|
Details |
|
|
Number of DC inputs |
1 (DC jack) |
|
DC jack input Voltage |
12-28 V |
|
Max power consumption |
23 W |
|
Max power consumption without attachments |
17 W |
|
Cooling type |
Passive |
Mobile
|
Details |
|
|
3G Category |
R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
|
3G bands |
1 (2100MHz) / 5 (850MHz) / 8 (900MHz) / 3
(1800MHz) |
|
LTE Category |
12 (600Mbps Downlink, 150Mbps Uplink) |
|
LTE FDD bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7
(2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
|
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
|
TAC |
86056104 |
Wireless specifications
|
Details |
|
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
3 |
|
Wireless 2.4 GHz chip model |
IPQ-4019 |
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Antenna gain dBi for 5 GHz |
4 |
|
Wireless 5 GHz chip model |
IPQ-4019 |
|
Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
|
Details |
|
|
10/100/1000 Ethernet ports |
5 |
Peripherals
|
Details |
|
|
Number of SIM slots |
1 Modem (Micro SIM) |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
Other
|
Details |
|
|
Mode button |
Yes |
Certification & Approvals
|
Details |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
Wireless specifications
|
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
1MBit/s |
25 |
-100 |
|
11MBit/s |
25 |
-94 |
|
6MBit/s |
26 |
-96 |
|
54MBit/s |
23 |
-78 |
|
MCS0 |
26 |
-96 |
|
MCS7 |
22 |
-73 |
|
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
|
6MBit/s |
26 |
-96 |
|
54MBit/s |
22 |
-80 |
|
MCS0 |
26 |
-96 |
|
MCS7 |
21 |
-75 |
|
MCS9 |
19 |
-70 |
