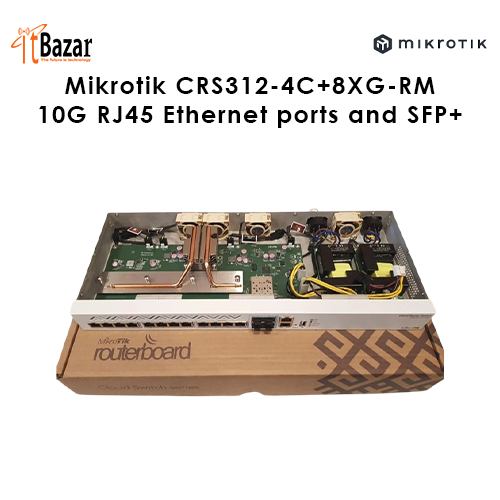

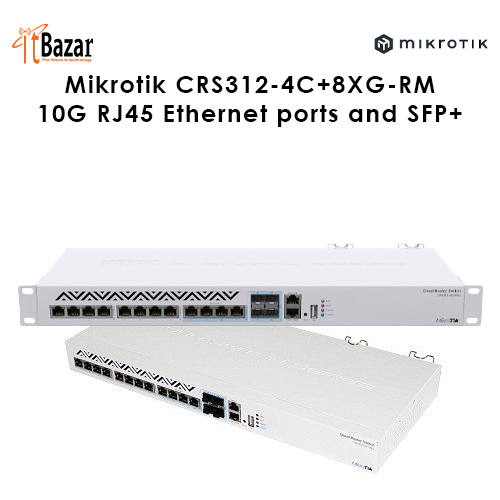

Mikrotik CRS312-4C+8XG-RM

Switch of the future: the first MikroTik product with 10G RJ45 Ethernet ports and SFP+

Remove the bottleneck from your network setup – it is time to upgrade that 1 Gigabit switch to something truly powerful and enjoy real speed. Introducing CRS312-4C+8XG-RM – our first product with 10G RJ45 Ethernet ports. Moreover, it also has 4 x 10G combo ports: use them for 10G RJ45 Ethernet or 10G SFP+, when you need an additional fiber connection. Combo ports can be used alongside the 8 regular 10G RJ45 Ethernet ports at all times. These ports can also be software selected, so you can use RouterOS scripting, to decide which combo ports will be active.

This device is a practical solution for those who work with huge data files and need fast, capable connection 24/7: multimedia production, scientific research, game development, big data analysis and so on. CRS312-4C+8XG-RM has a dual power supply for redundancy – no unexpected downtime when the deadlines are looming. It has a full size USB, a console port for configuration and a 1U rackmount case – fits all the standard racks.

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

This switch has a great total non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps and forwarding rate of 178 Mpps. CRS312-4C+8XG-RM – built for professionals, great for everyone!

Specifications

Details

Product code CRS312-4C+8XG-RM

Architecture MIPSBE

CPU QCA9531

CPU core count 1

CPU nominal frequency 650 MHz

Switch chip model 98DX8212

Dimensions 443 x 183 x 44 mm

RouterOS license 5

Operating System rs

Size of RAM 64 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -30°C to 70°C

Powering

Details

Number of AC inputs 2

AC input range 100-240

Max power consumption 60 W

Cooling type 4 fans

Ethernet

Details

10/100 Ethernet ports 1

Number of Combo 10G Ethernet/ SFP+ ports 4

Number of 1G/2.5G/5G/10G Ethernet ports 8

Peripherals

Details

Serial console port RJ45

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1

Other

Details

CPU temperature monitor Yes

Voltage Monitor Yes

Certification & Approvals

Details

Certification CE, EAC, ROHS
