Mikrotik CRS317-1G-16S+RM 10G Switch
Inhouse product
Mikrotik CRS317-1G-16S+RM 10G Switch
Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies

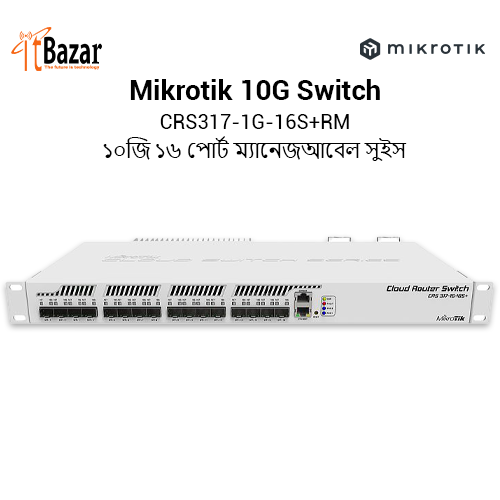

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

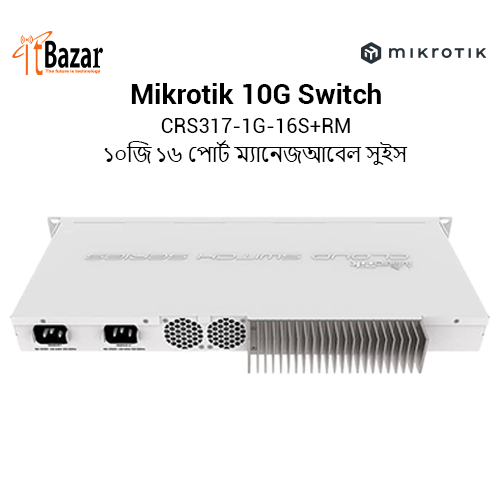

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.
Specifications
Details
Product code CRS317-1G-16S+RM
Architecture ARM 32bit
CPU 98DX8216
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 98DX8216
Dimensions 443 x 224 x 44 mm
RouterOS license 6
Operating System RouterOS / SwitchOS
Size of RAM 1 GB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
Suggested price $499.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 44 W
Cooling type 2 fans
Ethernet
Details
10/100/1000 Ethernet ports 1
Fiber
Details
SFP+ ports 16
Peripherals
Details
Serial console port RJ45
Other
Details
CPU temperature monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
