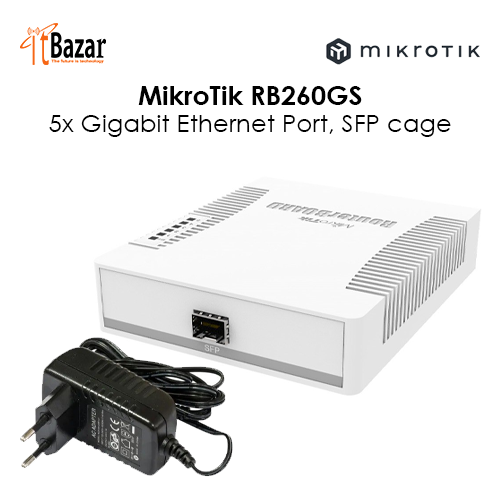

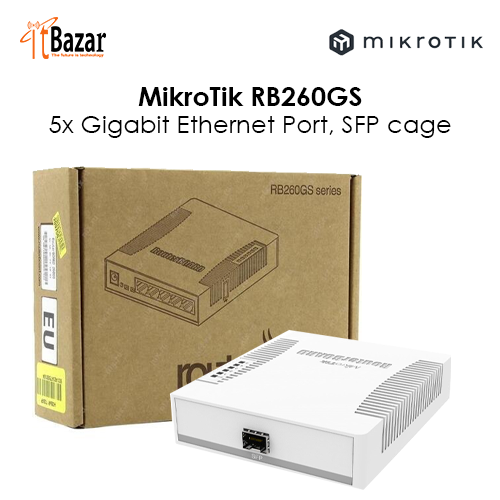

Mikrotik RB260GS(CSS106-5G-1S) Smart Switch
Inhouse product
Mikrotik RB260GS(CSS106-5G-1S) Smart Switch
5x Gigabit Ethernet Smart Switch, SFP cage, plastic case, SwOS
The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.
SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
Specifications
Details
Product code CSS106-5G-1S
Switch chip model QCA8337
Dimensions 113x139x28mm
Operating System MikroTik SwOS
Storage size 128 KB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 11-30 V
Max power consumption 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-30 V
Ethernet
Details
10/100/1000 Ethernet ports 5
Fiber
Details
SFP DDMI Yes
SFP ports 1
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
