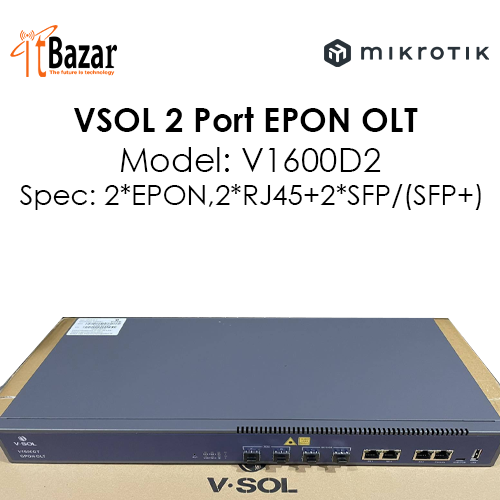

VSOL  V1601e02-dp 2Port EPON OLT 10G UPLINK ভি সল ২-পোর্ট ইপন ও এল টি ১০জি আপলিংক

Model: V1600D2

Spec: 2*EPON,2*RJ45+2*SFP/(SFP+)

2X64=128

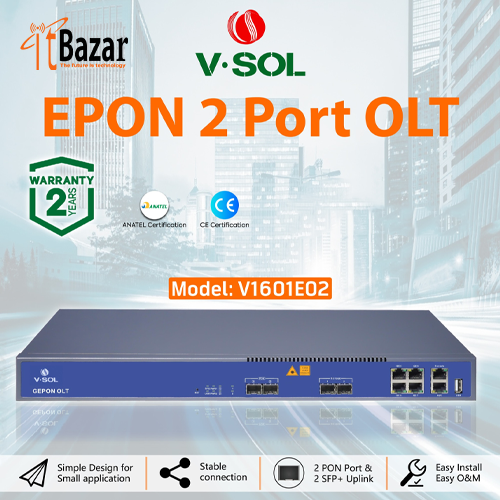

Vsol 2 Port Epon Olt 10G uplink, V1601e02-dp

The VSOL V1601E02-DP is a compact and cost-effective EPON OLT product. It supports functionalities such as STP/RSTP/MSTP, IGMPSnooping, and VLAN Translation/Q-in-Q, ensuring network stability and security. Additionally, it offers features like port mirroring, L3staticrouting, RIP/OSPF dynamic routing, and can be efficiently deployed and managed through SNMP/Telnet/CLI/WEB/SSHinterfaces. Whetheryou are a small or medium-sized enterprise or a provider of surveillance products, the V1601E02-DP can help you easily buildanefficient,secure, and stable network.

KeyFeatures:

• STP/RSTP/MSTP

• IGMP Snooping

• VLAN Translation/Q-in-Q

• Port Aggregation

• Dynamic BandwidthAllocation

Technical Specifications:

Management Ports

• 1*10/100 BASE-T out-band port, 1*CONSOLE port, 1*USB port

PON Port Specification

• Transmission Distance: 20KM

• EPON port speed”Symmetrical

1.25Gbps

• Wavelength: TX-1490nm, RX-1310nm

• Connector: SC/UPC

• Fiber Type: 9/125μm SMF

Management Mode

• SNMP/Telnet/CLI/WEB/SSH v2

Management Function

Layer 2 Feature

• 16K MAC address

• Support port VLAN

• Support 4096 VLANs

• Support VLAN tag/Un-tag, VLAN

transparent transmission, QinQ

• Support VLAN Translation: 2K

ingress & 1k egress

• Support IEEE802.3d(LACP): 128

groups

• Support RSTP, MSTP

• QoS based on port, VID, TOS

and MAC address

• IEEE802.x flow control • Support ACL: 2K Share in and

out • Port stability statistic and

monitoring; • Support P2P Function

Multicast • IGMP snooping

• Support 8K L2 multicast • Support 8K L3 multicast

DHCP

• DHCP server • DHCP relay

• DHCP snooping

• Fan Group Control; • Port Status monitoring and configuration

management; • Online ONU configuration and

management;

Layer 3 Features

• ARP proxy

• Static route

• Support Host Route(9KIPv4&3KIPv6) • Support Network Route(6KIPv4&2K IPv6 ) • Support RIPv1/v2, OSPFv2/v3• Support PPPoE+

• DHCP Snooping

• ACL

• Port Mirroring

• L3 Static Route, RIP/OSPF

• SNMP/Telnet/CLI/WEB/SSH
