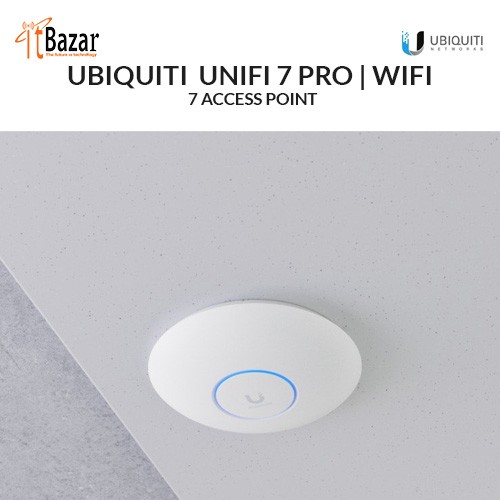

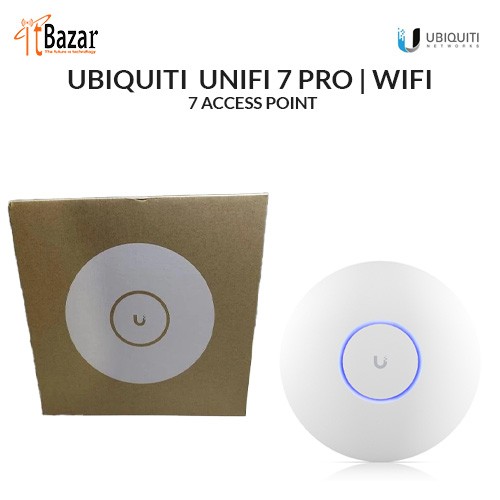

Ubiquiti UniFi U7Pro WiFi7 Access Point
Inhouse product
Ubiquiti UniFi U7Pro WiFi7 Access Point (উবিকুইটি ইউনিফাই ইউ৭ প্রো ওয়াইফাই ৭ একসেস পয়েন্ট )
Ubiquiti Networks UniFi 7 Pro | WiFi 7 Access Point | US Model |
Zoom in
Mechanical
Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
Weight 680 g (1.5 lb)
Enclosure material Polycarbonate, metal
Mount material Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 21W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
4.3 Gbps (BW240)
5.7 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
6 dBi
5.8 dBi
LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
