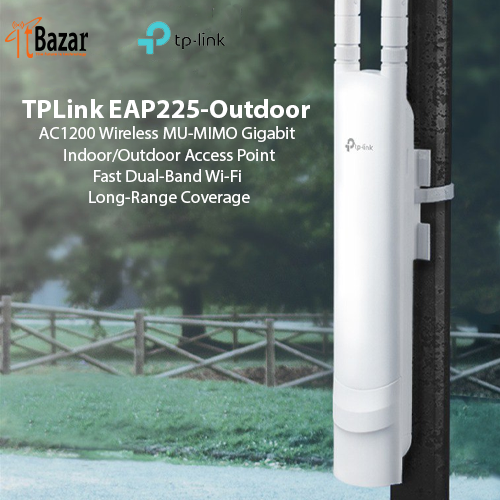

TPLink EAP225 Outdoor AP AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Durable, weatherproof enclosure for outdoor Wi-Fi applications

Up to 1200Mbps1 with 2×2 MIMO technology

Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient

Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations

High transmission power and high gain antennas provide a long-range coverage area

Cloud centralized management and Omada app for ultra convenience and easy management

Captive portal provides a convenient method for guest authentication

Facebook Wi-Fi and SMS authentication help to boost your business

802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

HARDWARE FEATURES

Interface 1x Gigabit Ethernet RJ-45 port

Button Reset

Power Supply 802.3af PoE and 24 Passive PoE(PoE injector included)

Power Consumption 10.5W

Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in.

(215 × 46 × 27 mm)

Antenna 2.4GHz: 2 × 3dBi

5GHz: 2 × 4dBi

Weatherproof Enclosure IP65

Mounting Pole/Wall mount (mounting kit included)

WIRELESS FEATURES

Wireless Client Capacity 220+**

Concurrent Clients 220+**

Wireless Standards IEEE 802.11a/b/g/n/ac

Frequency 2.4GHz, 5GHz

Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)

802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 5.5, 11Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

MU-MIMO

Airtime Fairness

Beamforming

Band Steering

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)

• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Omada Controller Software Yes

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts Yes

Management MAC Access Control Yes

SNMP v1, v2c

System Logging Local/Remote Syslog Yes

SSH Yes

Web-based Management Yes

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification FCC

RoHS

Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Passive PoE Injector

Power Cord

Mounting Kits

Installation Guide

Waterproof Rubber Insert

Waterproof Antenna

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment Operating Temperature: -30℃~70℃ (-22℉~158℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
