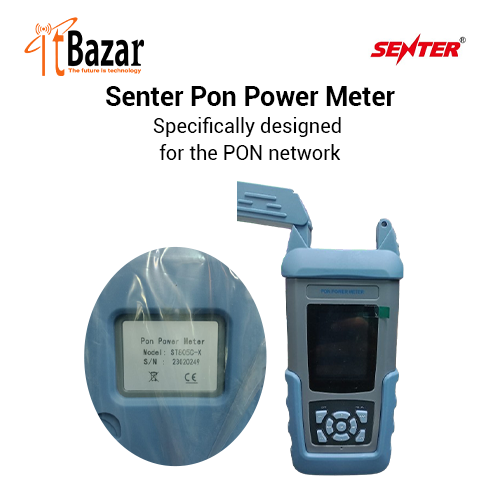

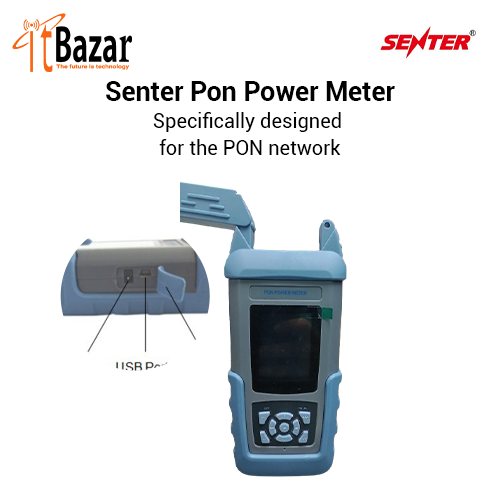

Pon Power Meter Senter ST805C-X
Inhouse product
Pon Power Meter Senter ST805C-X
Specifically designed for the PON network
Overview ST805C PON Power Meter is specifically designed for the PON network construction and maintenance. It's a useful site test tool for the engineers and maintenance operators of PON network of FTTX. It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot...
Overview
ST805C PON Power Meter is specifically designed for the PON network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of PON network of FTTX.
It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network. Pass/fail analysis is conveniently realized through users’ adjustable threshold of every wavelength.
Adopting 32 digits CPU with low power consumption, ST805C becomes more powerful and rapid. More convenient measurement owes to friendly operation interface.
Key Features
Test 3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm
Suitable for all PON network (APON, BPON, GPON, EPON)
User-defined Threshold Sets
Supply 3 groups of threshold values; analyze and display pass/fail status
Relative value (differential loss)
Save and upload the records to computer
Set threshold value, upload data, and calibrate wavelength through management software
32 digits CPU, easy to operate, simple and convenient
Auto power off, auto backlight off, low voltage power off
Cost efficient palm size designed for field and lab testing
Easy-to-use interface with large display for easy visibility
Main functions
3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm
test the burst mode signal of 1310nm
Threshold value setting function
Data storage function
Auto backlight off function
Display the voltage of battery
Power off automatically when it is in low voltage
Real-time clock display
