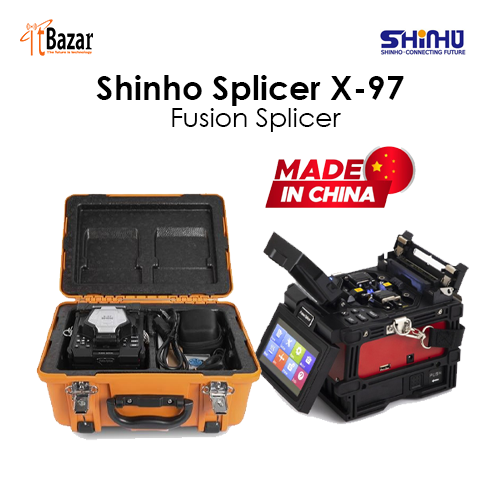

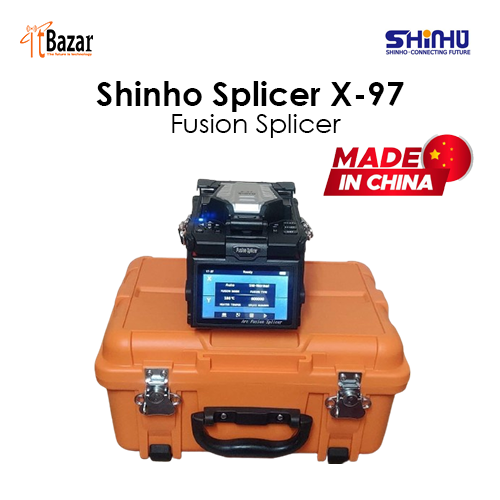

Shinho Splicer X-97 Fusion Splicer
Inhouse product
Shinho Splicer X-97 Fusion Splicer
X-97 Fiber fusion splicer is a 4-motor fusion splicer with fiber core alignment technology, GUI menu design, upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring etc. projects.
Features
1s boot up, 7s splicing, 26s heating
Stable performance, average fusion loss 0.03dB
Both touch screen and keypad applicable
Automatic ARC calibration, easy for maintaining
Inductive automatic heater, industrial quad-core CPU
Big capacity battery, more than 250 cycles splice & heat
Specifications
Applicable fiber
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), G.657 etc.
Diameter of cladding
80 -150μm
Diameter of coating
160-3000μm
Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss ＞ 60dB
Fibe cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
Splicing program 40 groups
Operate mode Automatic/Manual
Auto-heating Available
Typical splicing time 7 seconds
Typical heating time 26 seconds
Fiber magnification 320X (X or Y view), 160X (X and Y view)
Display screen 4.3 inch color LCD monitor
Records storage 8000 results
Loss evaluation Available
Tension test 1.8-2.2N
Interface GUI menu interface, easy for operation
Battery 5200mAh Li-battery, typical 250 cycles splicing and heating
Power supply Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
Electrodes life More than 4000 ARC discharges, can be replaced vonveniently
Ternimal USB2.0 port, for software upgrading and records exporting
Operating conditions Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
Dimension 149mm(L) * 120mm(W) * 127mm(H)
Weight 1.90kg (including battery)
Standard Accessories
NO. ITEM
1 Carrying box
2 Fiber cleaver
3 Fiber stripper
4 Drop cable stripper
5 Power cord
6 Adapter
7 Cooling tray
8 User manual (USB)
9 Spare electrodes
10 Cleaning tool kit
