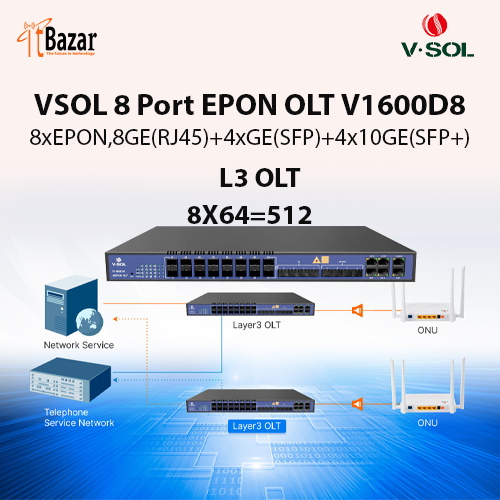

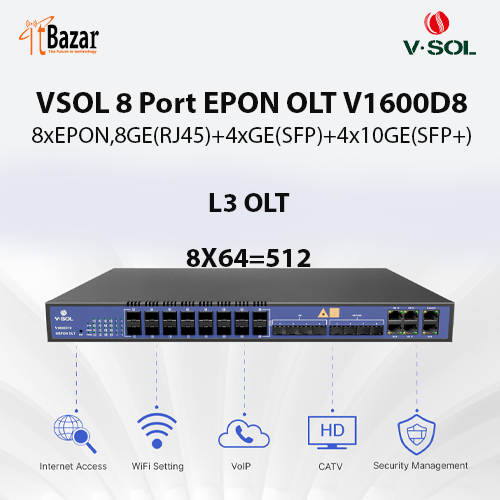

VSOL 8 Port EPON OLT V1600D8 10G UPLINK
Inhouse product
VSOL 8 Port EPON OLT V1600D8 ভি সল ৮পোর্ট ইপন ও.এল.টি ১০জি আপলিংক
8xEPON,8GE(RJ45)+4xGE(SFP)+4x10GE(SFP+)
Introduction:
V-SOL V1600D8 series EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient,flexible, easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT's canbeusedfor"Triple-Play", VPN, IP Camera, Enterprise LAN and Internet service provider applications. V1600D8 provides 8GE(copper) and 8*SFP slots independent interface for uplink, and 8*EPON OLT ports for downlink. It cansupportoverall 512 ONU's with 64 ONU's per PON port.
Technical Specifications:
Management Ports
• 1*10/100BASE-T out-band
port, 1*CONSOLE port
PON Port Specification
• Transmission Distance: 20KM
• EPON port speed”Symmetrical
1.25Gbps
• Wavelength: TX-1490nm, RX-1310nm
• Connector: SC/UPC
• Fiber Type: 9/125μm SMF
Management Mode
• SNMP/Telnet/CLI/WEB/SSH v2
Management Function
Layer 2 Feature
• 16K MAC address
• Support port VLAN
• Support 4096 VLANs
• Support VLAN tag/Un-tag, VLAN
transparent transmission, QinQ
• Support IEEE802.3d trunk
• Support RSTP, MSTP
• QoS based on port, VID, TOS
and MAC address
• IEEE802.x flow control • Port stability statistic and
monitoring; • Support P2P Function
Multicast • IGMP snooping
• 256 IP MulticastGroupsDHCP
• DHCP server • DHCP relay
• DHCP snooping
• Online ONU configuration and
management; • User management, Alarm management
Layer 3 Features
• ARP proxy
• Static route
• 1024 hardware Host Routes• 512 hardware Subnet Routes• Support RIPv1/v2, OSPFv2/v3• Support PPPoE+
