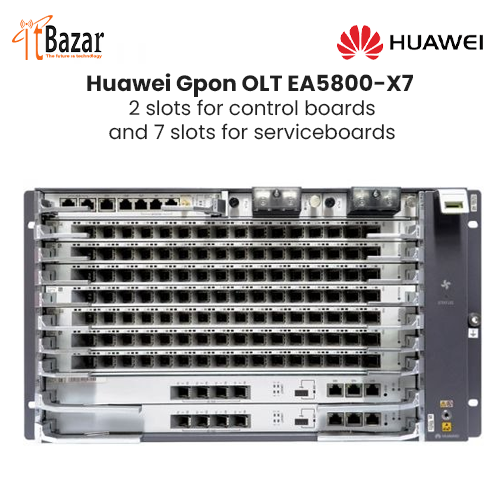

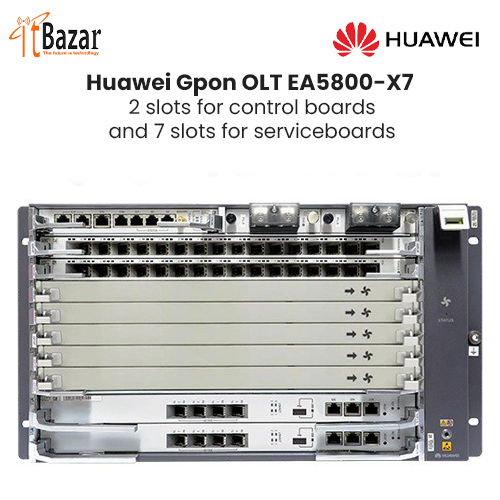

Huawei GPON OLT SmartAX EA5800  Chassis GPON OLT

Creating a premium experience through broader, faster, and smarter access networks.

Huawei SmartAX EA5800 Series

Huawei SmartAX EA5800 series, including EA5800-X17, X15, X7, and X2, build ultra-broadband, green, and intelligent aggregation access networks for users. Featuring distributed architecture, this multi-service access device provides users with a unified transmission platform for broadband, wireless, video, and video security.

GPON、XG(S)-PON、XGS-PON&GPON Combo、50G-PON&XGS-GPON Combo、 10GE/2.5GE/GE access are all supported for multiple network construction modes, including Fiber To The Office (FTTO), Fiber To The Machine (FTTM), and Fiber To The Home (FTTH). One optical network covers all services, simplifying network architecture and reducing Operating Expenditure (OPEX).

EA5800 is available in small, medium, and large specifications, to meet the diverse needs of enterprises.

Specifications

Parameters EA5800-X17 EA5800-X15 EA5800-X7 EA5800-X2

Supported Cabinets N63E-22 N66E-22 N63E-22, N66E-22 N63E-22

Board Configuration Control board slots: 9, 10

Service board or upstream interface board slots: 1 to 8, 11 to 19

Universal interface board slot: 0

Power board slots: 20, 21 Control board slots: 8, 9

Service board or upstream interface board slots: 1 to 7, 10 to 17

Universal interface board slot: 0

Power board slots: 18, 19 Control board slots: 8, 9

Service board or upstream interface board slots: 1 to 7

Universal interface board slot: 0

Power board slots: 10, 11 Control board slots: 3, 4

Service board or upstream interface board slots: 1 to 2

Does not support universal interface board

Power board slot: 0

Dimensions

(W x D x H)　　 11U high and 21 inches wide

Excluding mounting brackets: 493 x 287 x 486 mm

Including mounting brackets: 535 x 287 x 486 mm　 11U high and 19 inches wide

Excluding mounting brackets: 442 x 287 x 486 mm

Including mounting brackets: 482.6 x 287 x 486 mm　 6U high and 19 inches wide

Excluding mounting brackets: 442 x 268.7 x 263.9 mm

Including IEC mounting brackets: 482.6 x 268.7 x 263.9 mm

Including ETSI mounting brackets: 535 x 268.7 x 263.9 mm 2U high and 19 inches wide

Excluding mounting brackets: 442 x 268.7 x 88.1 mm

Including IEC mounting brackets: 482.6 x 268.7 x 88.1 mm

Including ETSI mounting brackets: 535 x 268.7 x 88.1 mm

Maximum Weight

(Including Mounting Brackets) 45 kg 35 kg 26 kg 9.4 kg

Maximum Input Current 60 A 60 A 40 A DC power supply: 20 A

AC power supply: 8 A

Power Supply Modes DC power support (dual for backup) DC power support (dual for backup) DC power support (dual for backup) DC power support (dual for backup)

AC power supply + battery for backup

Working Voltage Range –38.4 V to –72 V DC –38.4 V to –72 V DC –38.4 V to –72 V DC DC power supply: –38.4 V to –72 V

AC power supply: 100 V to 240 V

Rated Voltage –48 V/–60 V –48 V/–60 V –48 V/–60 V DC power supply: –48 V/–60 V

AC power supply: 110 V/220 V

Ambient Temperature –40°C to 65°C. The device can start up at temperatures as low as –25°C.

Note: The 65°C refers to the highest temperature measured at the air intake vent of the service subrack.

Ambient Humidity 5–95% RH

Atmospheric Pressure 70–106 kPa 70–106 kPa 70–106 kPa 70–106 kPa

Altitude 4000 m. The air density varies with altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of EA5800 varies with altitude.

Switching Capacity of the

Control Board (Load Sharing Mode) 8.3 Tbit/s 8.3 Tbit/s 8.3 Tbit/s 560 Gbit/s

Maximum Bandwidth per Service Slot

(Load Sharing Mode) 200 Gbit/s 200 Gbit/s 200 Gbit/s 100 Gbit/s

Maximum Number of

Concurrent 4K Video Users 17,000 17,000 7000 2000

Maximum Number of

ARP/Routing Entries 131,072 131,072 131,072 32768

Switching/Forwarding Delay Short forwarding delay: The 100 Mbit/s Ethernet port sends 64-byte Ethernet packets with a delay shorter than 20 μs.

Bit Error Rate (BER) in Full Load A BER smaller than 10e-7 for a port that transmits data in full load.

System Reliability Specifications System availability for typical configurations: > 99.999%

Mean-Time-Between-Failures (MTBF): Approximately 45 years.

Note: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of EA5800 is only for reference. The average repair time for Field Replaceable Units (FRUs) is about 2 hours. The preceding values are only for reference. For details, please contact relevant Huawei engineers.

GPON Ports 272 240 112 32

XG-PON Ports 272 240 112 32

XGS-PON Ports 272 240 112 32

XGS-PON&GPON Combo Ports 272 240 112 32

GE/FE Ports 816 720 336 96

10 GE Ports 408 360 168 16
