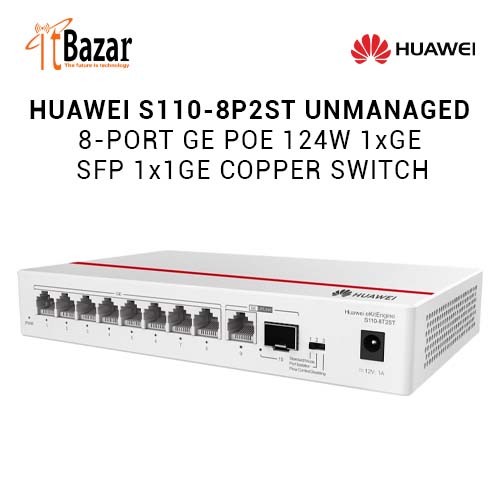

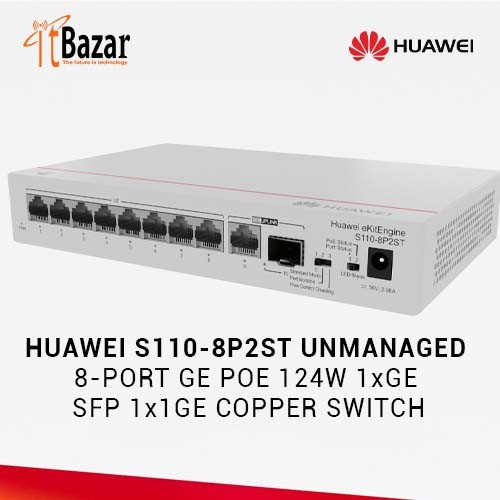

Huawei PoE Switch S110-8P2ST Gigabit Unmanaged Switch

The Huawei S110-8P2ST Ethernet switches are expertly engineered to provide seamless integration of both access and transmission capabilities, ensuring reliable connectivity and exceptional transmission quality for enterprise network services.

Specifications

Description S110-8P2ST (8*10/100/1000BASE-T ports, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter)

Part Number 98012195

Model S110-8P2ST

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.)

Dimensions with packaging (H x W x D) [mm(in.)] 150.0 mm x 270.0 mm x 200.0 mm (5.91 in. x 10.63 in. x 7.87 in.)

Chassis height [U] 0.8 U

Chassis material PC+ABS

Weight without packaging [kg(lb)] 1.11 kg (2.45 lb)

Weight with packaging [kg(lb)] 1.46 kg (3.22 lb)

Typical power consumption [W] 11 W

Typical heat dissipation [BTU/hour] 37.53 BTU/hour

Maximum power consumption [W] Without PoE: 11 W

Full PoE load: 155 W (PoE: 124 W)

Maximum heat dissipation [BTU/hour] Without PoE: 37.53

Full PoE load: 528.88

Static power consumption 4

MTBF [years] 78.77 years

MTTR [hours] 2 hours

Availability > 0.99999

Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30

Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans), < 20

Number of card slots 0

Number of power slots 0

Number of fans modules 0

Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

Working mode Standard mode

Port isolation

Flow control disabling

MAC address entry 2K

Redundant power supply Not supported

Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)

Power supply mode Power adapter

Rated input voltage [V] Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 56 V DC

Input voltage range [V] Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz

Maximum input current [A] 2.68 A

Memory –

Flash memory –

Console port Not supported

Eth Management port Not supported

USB Not supported

RTC Not supported

RPS input Not supported

Service port surge protection [kV] Common mode: ±4 kV

Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV

Ingress protection level (dustproof/waterproof) IP20

Types of fans None

Heat dissipation mode Natural heat dissipation

Airflow direction –

PoE Supported

Certification EMC certification

Safety certification

Manufacturing certification
