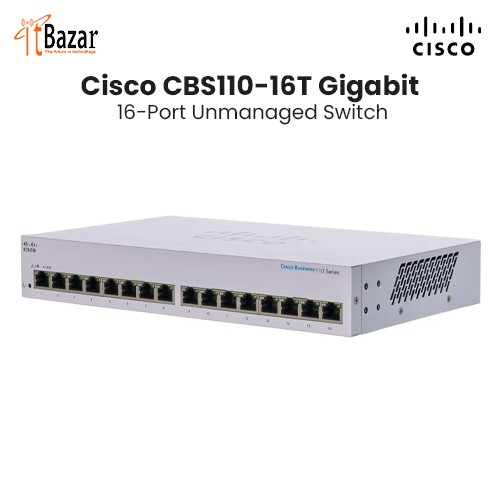

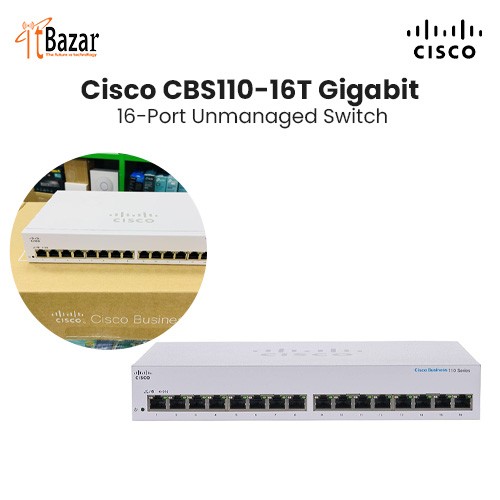

Cisco CBS110-16T 16-port Gigabit Unmanaged Ethernet Switch

The Cisco Business CBS110-16T is an unmanaged switch designed to provide basic network connectivity for small businesses, home offices, or branch locations. The switch offers 16 Ethernet ports, specifically 10/100/1000BASE-T ports. These ports support Gigabit Ethernet speeds, enabling high-speed data transfer and reliable connectivity for devices on the network. The CBS110-16T operates as an unmanaged switch, requiring no complex configuration. It is a plug-and-play device, allowing for easy installation and use without the need for advanced network knowledge. The switch supports auto-negotiation on all ports. This feature allows the switch to automatically determine and set the optimal speed (10/100/1000 Mbps) and duplex mode (half or full duplex) for each connected device. The switch supports Auto MDI/MDIX on all ports. This feature enables the switch to automatically detect and adjust for the type of Ethernet cable being used, whether it's a straight-through or crossover cable. The CBS110-16T incorporates energy-saving features to minimize power consumption. It adjusts power usage based on network activity and link status, helping to reduce operating costs and environmental impact. Designed with a compact desktop form factor, the switch is ideal for environments with limited space. It can be placed on a desk or easily mounted on a wall, providing flexibility in deployment. The CBS110-16T complies with various IEEE networking standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab. This ensures compatibility with a wide range of network devices and interoperability within the network infrastructure. The switch is equipped with LED indicators on each port, providing visual feedback on the link status and activity of each individual port. This allows for quick monitoring and troubleshooting of network connections.

General Information

Brand Cisco

Model CBS110-16T

Technical Information

Capacity in millions of packets per second (mpps) (64-byte packets) 23.8 mpps

Switching capacity in gigabits per second (Gbps) 32 Gbps

Total system ports 16 Gigabit Ethernet

RJ-45 ports 16 Gigabit Ethernet

Packet Buffer 2 Mbit

Unit dimensions (W x D x H) 279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
