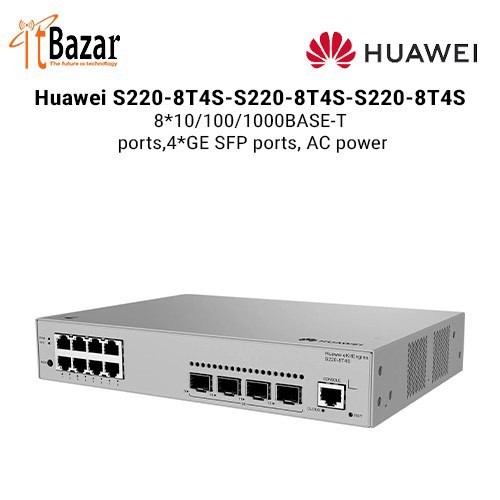

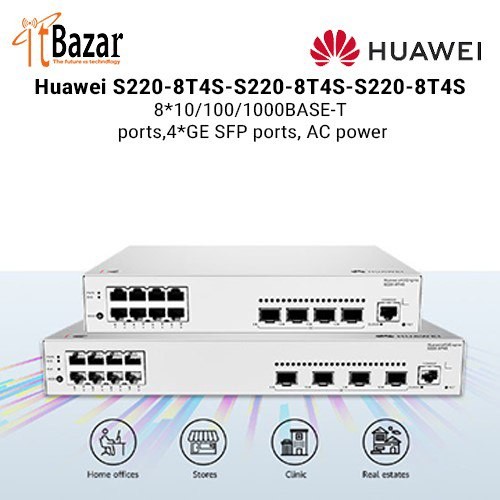

Huawei Cloud Managed Switch S220-8T4S-S220-8T4S-S220-8T4S(8*10/100/1000BASE-T ports,4*GE SFP ports, AC power

The S220-8T4S is designed to meet all your networking needs with its 810/100/1000BASE-T downlink ports and 4GE SFP uplink ports. Compact and versatile, it supports rack, desk, and wall mounting with a 1U metal chassis and built-in fan for efficient heat dissipation. With a power consumption of just 15.95W, it ensures energy efficiency while providing superior surge protection for both service and power ports. The switch is certified for EMC, safety, and manufacturing standards, delivering reliable performance in any environment.

>Managed L2

>Quality of Service (QoS) support Configuring Location Settings (CLI)

>Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45

>MAC address table: 16000 entries Switching capacity: 24 Gbit/s

>Access Control List (ACL)

>1U Rack mounting

>AC Power supply included

Specifications

Management features

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Yes

Cloud-managed

Yes

Configuring Location Settings (CLI)

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

4

Console port

RJ-45

Network

Link aggregation

Yes

Rate limiting

Yes

VLAN support

Yes

Number of VLANs

4094

Data transmission

Switching capacity

24 Gbit/s

Forwarding rate

18 Mpps

MAC address table

16000 entries

Static route

Yes

Security

DHCP features

DHCP client, DHCP server, DHCP snooping

Access Control List (ACL)

Yes

Authentication type

IEEE 802.1x

Authentication

MAC-based authentication

Security algorithms

SNMP, SNMPv2, SNMPv3

Loop protection

Yes

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Form factor

1U

Product colour

Grey

Housing material

Metal

LED indicators

Yes

Number of fans

1 fan(s)

International Protection (IP) code

IP20

Performance

Noise level

44.5 dB

Power

Power source

AC

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

21.52 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 5000 m

Weight & dimensions

Width

250 mm

Depth

187 mm

Height

43.6 mm

Packaging data

Package weight

2.22 kg
