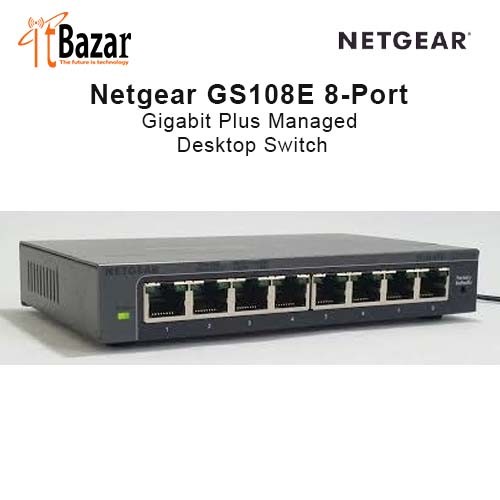

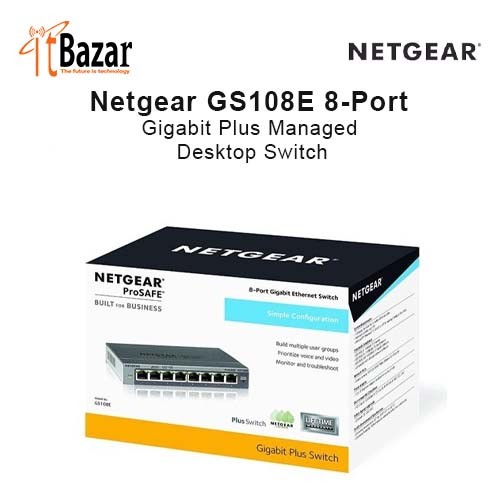

Netgear Switch GS108E 8Port Gigabit Plus Managed Switch

The NETGEAR® Gigabit managed Switch series helps businesses costeffectively expand their network to Gigabit speeds and higher port counts.

The GS105v5, GS108v4, and GS116v2 Gigabit Ethernet switches come with 5, 8, and 16 Gigabit copper ports in a desktop metal case and are wall-mountable

These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Smart Managed Plus Switch delivers network monitoring, traffic prioritization and VLAN

Up to 48 ports (depending on model) deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port

Simple, yet useful network set-up on top of plug-and-play connectivity

Gigabit speed with QoS, VLAN and network monitoring

VLAN support for traffic segmentation

Quality of Service (QoS) for traffic prioritization

Auto “denial-of-service” (DoS) prevention

Troubleshoot connection issues via cable test

Loop prevention and broadcast storm controls

IGMP snooping v1, v2 and v3 support for multicast optimization

Rate limiting for better bandwidth allocation

Port mirroring for network monitoring

Jumbo frame support

Port Trunking to increase bandwidth and provide redundant links

Traffic Management

Auto Negotiation of speed and duplex modes

802.3x Flow Control

DHCP Client

Dynamic MAC address management

IEEE 802.1Q-based or port-based VLAN

QoS based on WRR, strict priority, or both

Port-based and IEEE 802.1p-based QoS

QoS based on ToS (Type-of-Service)

DSCP Support (GS105E and GS105PE only)

Rate Limiting

Link Aggregation / Port Trunking (Static LAGs on 16 ports and 24 ports, Static LAGs and LACP on 48 ports)

Multicast Efficiency

IGMP snooping, v1, v2 and v3

Blocking of unknown multicast traffic

Act as static multicast router port

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

Power savings with short cable detection and auto power-down when ports are in idle mode
