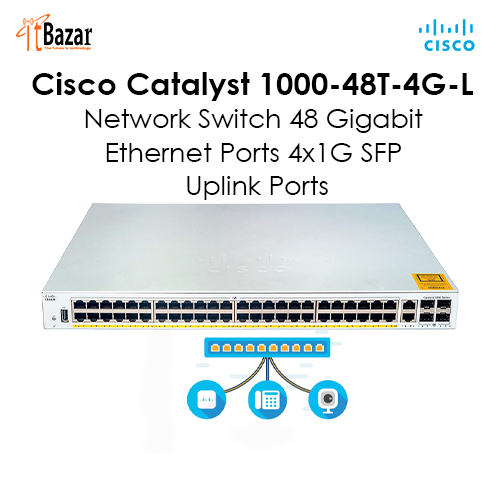

Cisco Catalyst 1000-48T-4G-L Network Switch 48 Gigabit Ethernet Ports 4x1G SFP Uplink Ports

Product overview

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Product highlights

Cisco Catalyst 1000 Series Switches feature:

8, 16, 24, or 48 Gigabit Ethernet and 24, 48 port Fast Ethernet data or PoE+ ports with line-rate forwarding

2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks (8 Port models only) or 4 fixed 10 Gigabit Ethernet Enhanced SFP (SFP+) uplinks on the Gigabit Ethernet models and 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) and 2 RJ 45 Combo uplinks on the Fast Ethernet models

Perpetual PoE+ support with a power budget of up to 740W

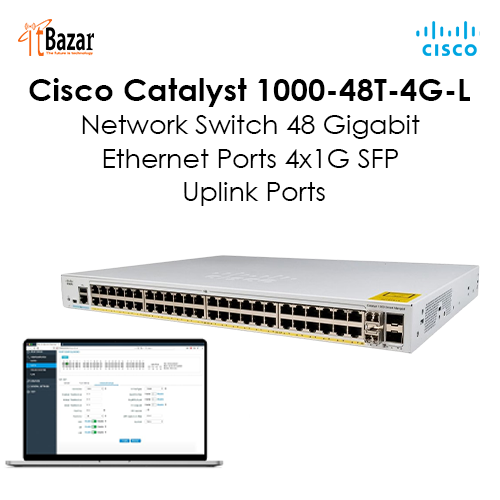

CLI and/or intuitive web UI manageability options

Network monitoring through sampled flow (sFlow)

Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard

Compact fanless models available with a depth of less than 13 inches (33 cm)

Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces

Reliability with a higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty support (E-LLW)

Configurations

Gigabit Ethernet / FE ports : 48 10/100/1000 RJ45 PoE+

Uplink interfaces : 4 SFP+

PoE+power budget : 370W

Fanless : N

Dimensions (WxDxH in inches) : 17.48 x 13.78 x 1.73

Weight (kg) : 5.43

Specifications

Console ports

RJ-45 Ethernet : 1

USB mini-B : 1

USB-A port for storage and Bluetooth console : 1

Memory and processor

CPU : ARM v7 800 MHz

DRAM : 512 MB

Flash memory : 256 MB
