Description

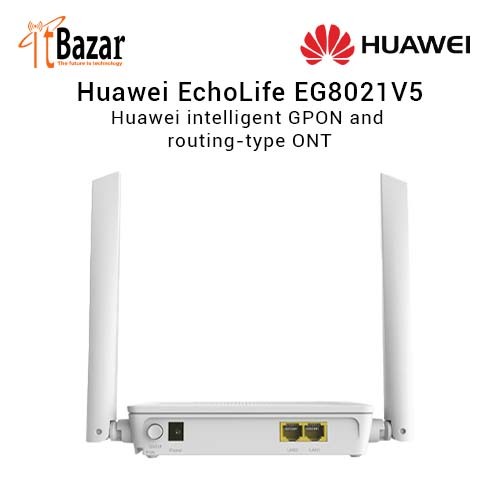

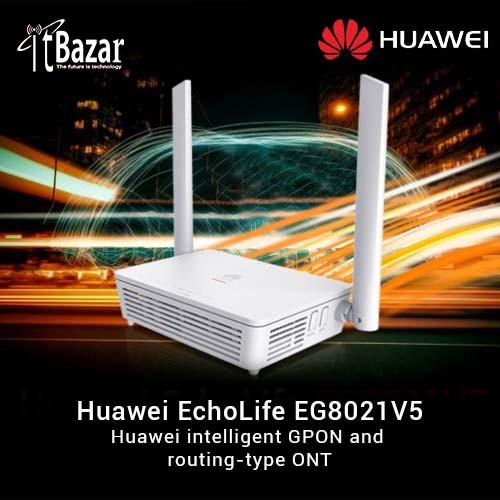

Huawei ONU Router EG8021V5

Huawei EG8021V5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.

The high forwarding performance ensures the user experience of data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Specifications

Parameters	EchoLife EG8021V5
Dimensions (H x W x D) (without external antenna and pads)	30 mm x 155 mm x 105 mm
Weight	About 196 g
NNI	GPON
Optical connector	SC/APC
UNI	2xGE+2.4GHz/5GHz Wi-Fi
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50/60 Hz
System power supply	12 V DC, 1 A
Static power consumption	4.6 W
Maximum power consumption	11.6 W
Indicators	Power/PON/LOS/LAN1/LAN2/WLAN/WPS
Memory	128 MB Flash, 128 MB RAM
GPON port	• Class B+ • Receiver sensitivity: -27 dBm • Overload optical power: -8 dBm • Wavelengths: 1310 nm upstream, 1490 nm downstream • Wavelength blocking filter (WBF) of G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Ethernet port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
Wi-Fi	• IEEE 802.11 b/g/n (2.4GHz) • IEEE 802.11 a/n/ac (5GHz) • 2 × 2 MIMO (2.4GHz&5GHz) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4GHz&5GHz concurrent • Air interface rate: 300 Mbit/s (2.4GHz), 867 Mbit/s (5GHz)
Wi-Fi
