Description

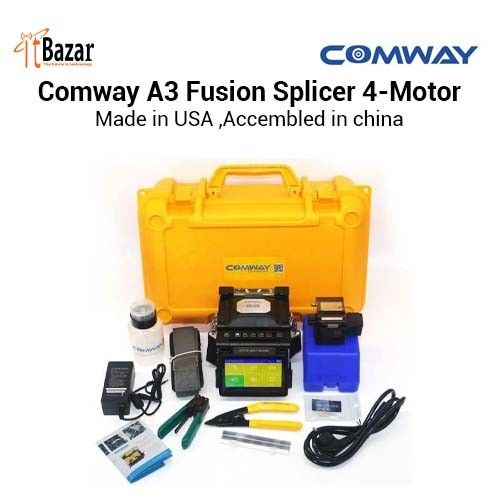

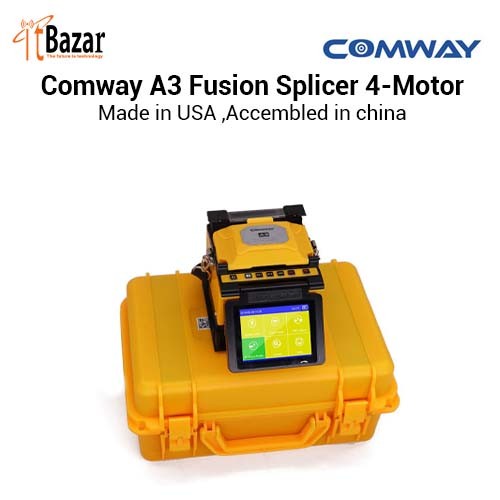

Comway A3 Fusion Splicer 4-Motor

Made in USA ,Accembled in china

Wterproof,Anti-shock,Dustproof

High precision PAS alignment system

*Splicing time 6 sec., heating time 30 sec.

*Fast boot technology

*More than 240 times splicing and heating

*Resist dust, rain, wind, and shock

*Fiber type identify, AUTO splicing mode

*Easy to change electrodes and fiber holder

*High speed USB, maintenance via the Internet

Specification

Size & Weight	D136×W135×H136(mm),1.5kg (1.8kg with battery)
Fiber alignment	High precision PAS Alignment
Fiber type	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ/NZDS(ITU-T G.655),BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80~150um,coating 100~1000um
Cleave length	250um cladding diameter 8~16mm,over 250um cladding diameter 16mm
Splicing programs	Max.100
Splicing time	6 sec. [SM Fast] program, 15 sec. [SM G652] program
Heating programs	Max.30
Heating time	Typical 15 sec.(Adjustable)

Splice protector	10~60mm
Splice image capture	Max.300
Splice data storagge	Max.20000
Splice loss	SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB;BI:0.02dB
Return loss	>>60dB
Fiber view	Two 300x cameras observation,4.1 inch high-light color screen
Operation condition	Altitude 0~5000m,Humidity 0~95%,Temperature -20~+50℃,Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80℃,(Battery -20~+40℃)

Fiber magnification	300x for X or Y single axis view,150x for both X & Y dual axis view
Battery parameters	4000mAh High capacity battery,more than 240 times splicing and heating
Port	High speed USB
Electrodes life	5000 arc discharges
Power supply	AC 100-240V,50/60Hz
