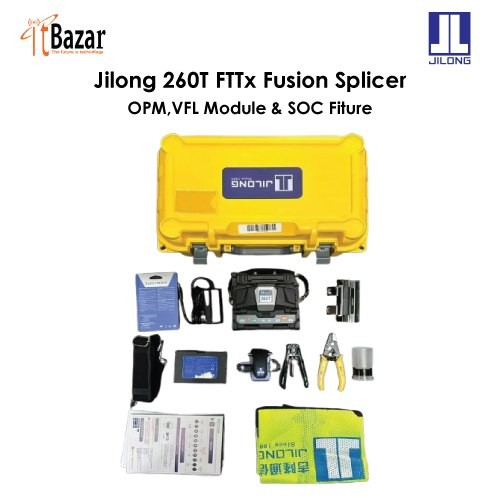

Jilong 260T FTTx Fusion Splicer Opm,Vfl & Soc
Inhouse product

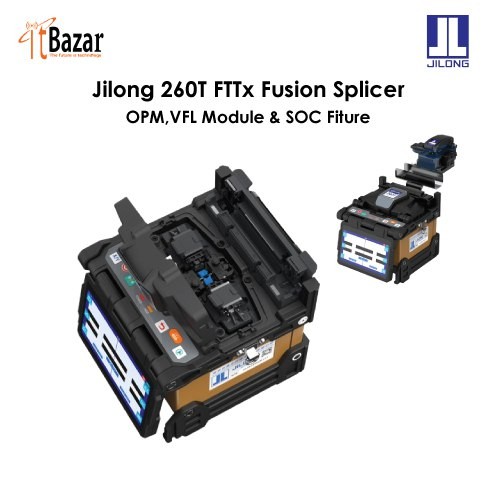

Jilong 260T FTTx Fusion Splicer
3D Surrounds Dual Heating Element
Design of Tool free Disassembly Integrated SOC Fixture
Tool free Hot Swappable OPM/VFL module
260T FTTx Fusion Splicer
● 3D Surrounds Dual Heating Element
● Design of Tool free Disassembly Integrated SOC Fixture
● Tool free Hot Swappable OPM/VFL module
Specifications
Splice Method : Active Clad-Alignment
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable : 0.25~3.0 mm / indoor flat cable
Fiber Holder : Replaceable
Fiber Diameter : Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length : 8~16 mm
Splice mode : Max 128 modes
Typical Splice Loss : SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB
Return Loss : >>60dB
Splicing Time : SM Quick mode : 8 sec
Estimated Splice Loss : Available
Heating Time : Quick mode 8 sec.(SM G652 250μm 40mm Sleeve) adjustable
Protection Sleeve Length : 20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs: Max 32 modes
Battery : 5200mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★②
Electrode Life : 5000 arcs, can be extended by using an electrode grinder ★③
Auto-start : Splice / Heating
Automatic Fiber Identification : /
Automatic ARC Identification : Automatic arc calibration by air pressure and temperature
Results Storage : The last 10,000 splice records and 2,000 result images
Tension Test : 1.96~2.25N
Operating Condition : Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition : 0~95% relative humidity, -20~60°C
Display : 4.3” Touch Screen
Fiber Magnification : X, Y, XY, X/Y : 320X Magnification
Power Supply : AC Input 100-240V, DC Input 9-14V
Terminal : USB2.0
Weight : 1.65kg without battery / 1.92kg with battery
