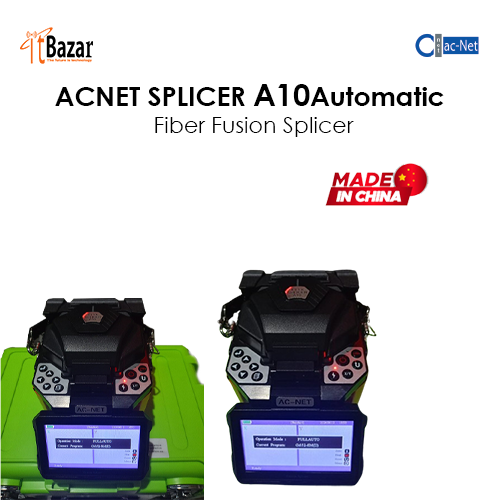

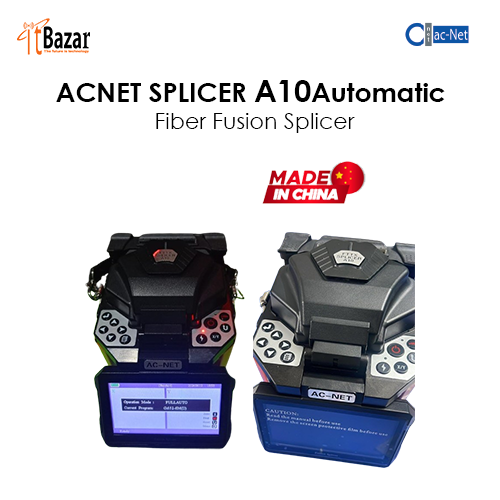

ACNET SPLICER A10Automatic Fiber Fusion Splicer  এসিনেট স্প্লাইসার এসি ১০ ফাইবার জয়েন্ট মেশিন

Used for MAN/ Telecommunication/ FTTx projects.

Automatic splicing and heating

Multi function holders for different types fiber cables.

6 seonds splicing, 20s heating

Both touch screen and keypad operation

lti Function Automatic Fiber Fusion Splicer X 800

X-800 Fiber fusion splicer is with core to core alignment technology, it has flexible and stable performance when aligning fibers. It is with classic industrial design, user-friendly size and weight, easy operating GUI menu, convenient ARC automatic calibration function and high quality components. It is suitable for both indoor and outdoor fiber splicing projects.

Features

1s boot up, 6s splicing, 20s heating

Real-time ARC calibration automatically

Automatic splicing and heating, supporting user-defined

Industrial quad-core CPU, big capacity Li-battery

Specifications

Applicable fiber

SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)

Diameter of cladding

80 -150μm

Diameter of coating

160-3000μm

Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss ＞ 60dB

Fibe cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)

Splicing program 40 groups

Operate mode Automatic/Manual

Auto-heating Available

Typical splicing time 6 seconds

Typical heating time 20 seconds

Fiber magnification 320X (X or Y view), 160X (X and Y view)

Display screen 4.3 inch color LCD monitor, touch screen

Records storage 8000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easy for operation

Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging

Power supply Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V

Electrodes life More than 4000 ARC discharges, can be replaced conveniently

Ternimal USB2.0 port, for software upgrading and records exporting

Operating conditions Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s

Dimension 157mm(L) * 136mm(W) * 140mm(H) (including rubber armor)

Weight 2.10kg (including battery)

Standard  Accessories

NO. ITEM

1 Carrying box

2 Fiber cleaver

3 Fiber stripper

4 Drop cable stripper

5 Power cord

6 Adapter

7 Cooling tray

8 User manual (USB)

9 Spare electrodes

10 Cleaning tool kit

11 Strap
