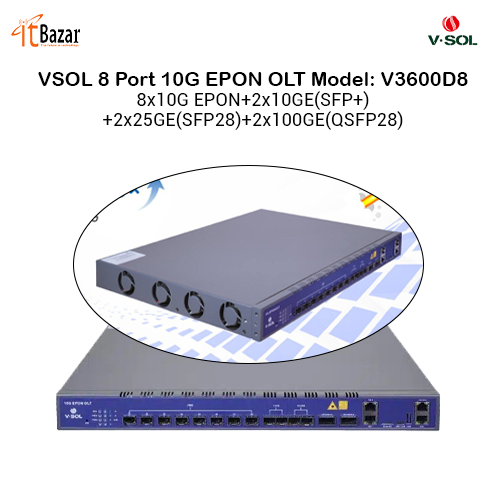

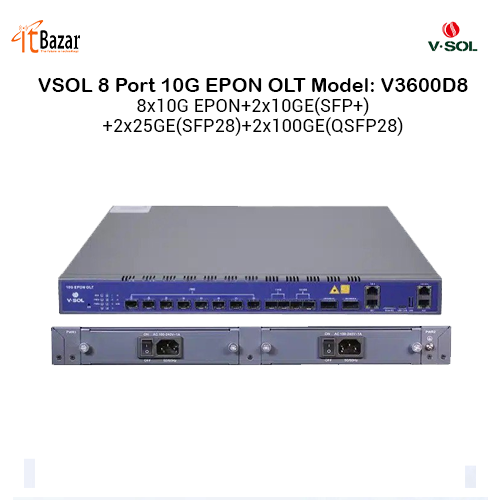

VSOL 10G EPON OLT V3600D8 8-Port 1x256 Split Ratio
Inhouse product
VSOL 10G EPON OLT V3600D8 8-Port 1x256 Split Ratio
V-SOL V3600D8 is a 8-Port 10G EPON OLT which is standardized in IEEE 802.3av and is evolved from the EPONstandardIEEE802.3ah. V3600D8 has good compatibility so that 10G EPON ONUs can coexist with EPON ONUs in an ODN.t is appropriatetobedeployed in compact room environment. The OLT's can be used for FTTx networks, 5G wireless networks and other networkenvironments. V3600D8 provides 2*GE(RJ45), 2*10GE(SFP+), 2*25GE(SFP28) and 2*100GE(QSFP28) slots independent interfacefor uplink, and8*10G EPON ports for downlink(Maximum Split Ratio is 1:256)
Technical Specifications:
Management Ports
• 1*10/100BASE-T out-band port, 1*CONSOLE port，1 Type-C
PON Port Specification
• Transmission Distance: 20KM
• 10Gbps 1577nm TX
• 1.25Gbps 1490nm TX
• 1.25Gbps 1310nm RX
• 10Gbps 1270nm RX
• Connector: SC/UPC
• Fiber Type: 9/125μm SMF
Management Mode
• SNMP/Telnet/CLI/WEB/SSH v2/EMS
Management Function
Layer 2 Feature
• 16K MAC address
• Support port VLAN
• Support 4096 VLANs
• Support VLAN tag/Un-tag, VLAN
transparent transmission, QinQ
• Support IEEE802.3d trunk
• Support RSTP, MSTP
• QoS based on port, VID, TOS and
MAC address
• IEEE802.x flow control • Port stability statistic and monitoring
• Support P2P Function
