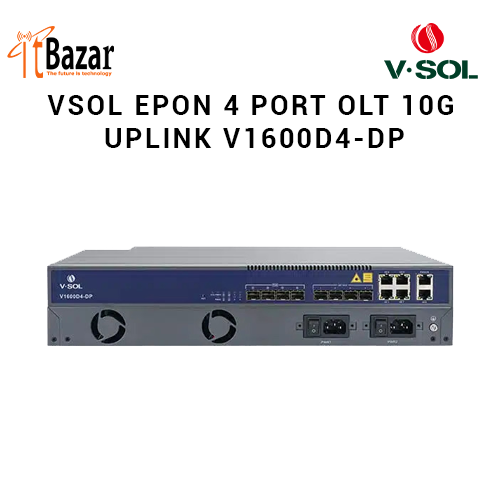

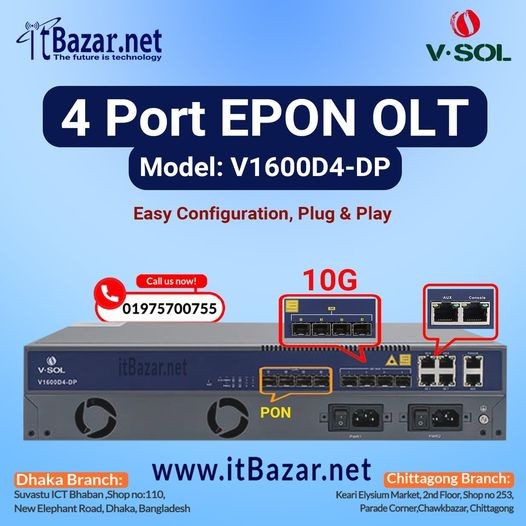

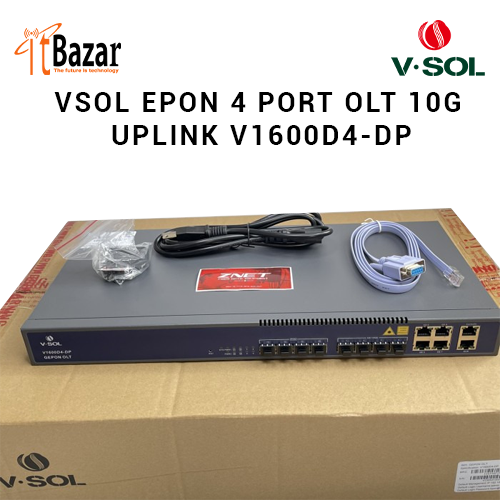

VSOL EPON OLT V1600D4-DP 4 PORT 10G UPLINK
Inhouse product
VSOL EPON OLT V1600D4-DP 4 PORT 10G UPLINK
V-SOL V1600D4-BT series EPON OLT products are 1U height 19 inch rack mount products. The features ofthe OLT are small, convenient,flexible, easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT's canbeusedfor"Triple-Play", VPN, IP Camera, Enterprise LAN and Internet service provider applications. V1600D4-BT provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT ports for downlink. Itcansupport overall 256 ONU's with 64 ONU's per PON por
V1600D4-DP/BT V1600D8 V1600D16
Dimension (L*W*H) 442mm*200mm*43mm 442mm*320mm*43mm
GE/10GE
Uplink Port QTY 8 16 12
RJ45(GE) 4 8 4
SFP(GE) / 4 4
SFP+(10GE) 4 4 4
EPON Port QTY 4 8 16
Physical Interface SFP Slots, Max splitting ratio ≤ 1:64
Management Ports 1*FE out-band port, 1*CONSOLE port
PON Port Specification
(PX20++ module) Transmission Distance 20KM
EPON port speed Upstream 1.25G, Downstream 1.25G
Wavelength TX 1490nm, RX 1310nm
Connector SC / UPC
Fiber Type 9/125μm SMF
Supported PON module level PX20, PX20+, PX20++, PX20+++
Weight
(Single AC Power) Net Weight 3.2kg 4.5kg 6.5kg
Gross Weight 4.3kg 6.5kg 7.8kg
Power Supply AC:100~240V, 47/63Hz, DC:-48V, BBU(option for D4-BT), Double Power Module Hot Backup
Power Consumption 35W 45W 85W
Operating
Environment Working Temperature 0°C ~ +50°C
Storage Temperature -40 ~ +85°C
Relative Humidity 5 ~ 90% (non-conditioning)
Management Mode EMS, TR069 VACS, WEB, SNMP, Telnet , CLI
