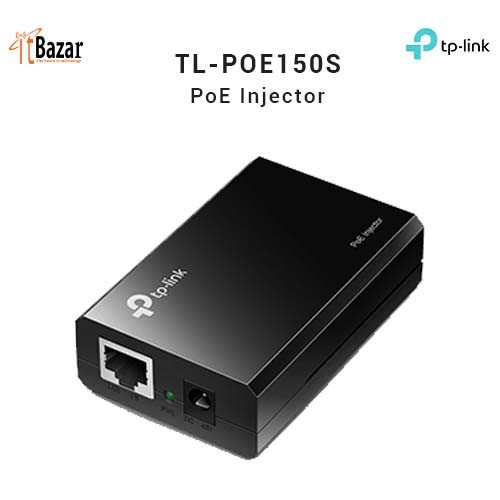

TPLink TL-POE150S PoE Injector
Inhouse product
TPLink TL-POE150S PoE Injector
TL-POE150S End of Life
PoE Injector
IEEE 802.3af compliant
Auto-determine the necessary power requirements
Gigabit speed support
Plug-and-Play, requires no configuration
HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 15.4W (Max. 48VDC)
LED Indicator PWR
Dimensions ( W x D x H ) 3.2 × 2.1 × 0.9 in.
(81 × 54 × 24 mm)
SOFTWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements
OTHERS
Certification FCC, RoHS

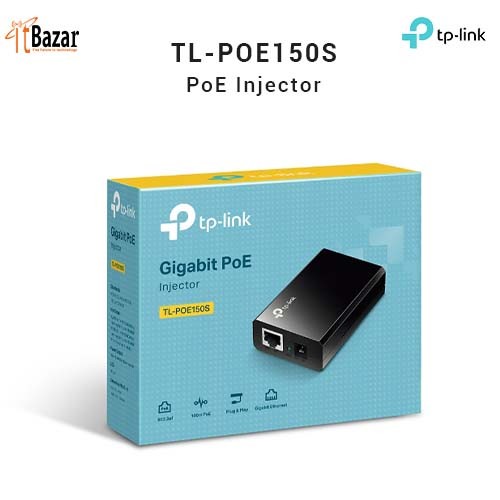

Package Contents Gigabit PoE Injector TL-POE150S
Power Adapter
RJ45 Cable
Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
