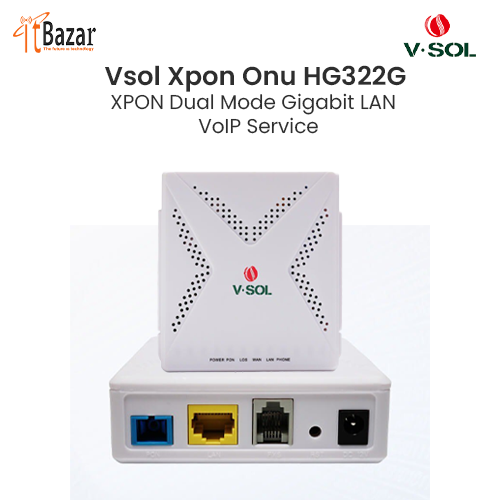

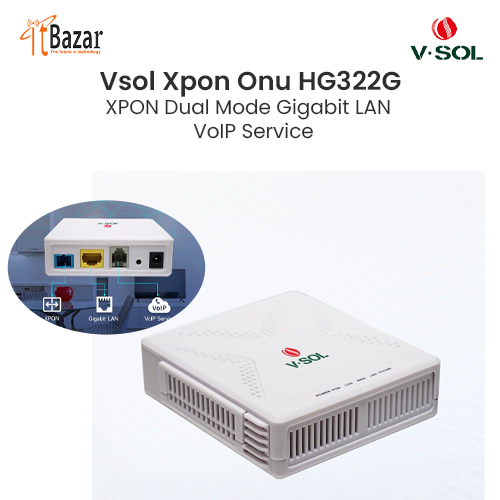

Vsol Xpon Onu HG322G With Sip Support FXS Port

HG322G (1GE+1POTS XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed networkoperatorsforFTTH and triple play services. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and alsosupportsLayer2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol,and we can configure or manage various services of the ONT on the VSOL OLT. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conformstoaseriesofinternational technical standards such as IEEE802.3ah and ITU-T G.984

○ Hardware Parameter

Dimension 100mm*92mm*29.5mm(L×W×H)

Net weight 110g

Operating condition Operating temp: -10 ~ +55°C

Operating humidity: 5~95% (non-condensed)

Storing condition Storing temp: -40 ~ +70°C

Storing humidity: 5 ~ 95%  (non-condensed)

Power adapter DC 12V/1A, external AC-DC power adaptor

Power supply ≤10W

Interface 1GE+1POTS

Indicators PWR, PON, LOS, WAN, LAN,  PHONE

 Interface Parameter

PON interface

1XPON port(EPON PX20+ and GPON Class B+)

SC single mode, SC/UPC connector

TX optical power: 0～+4dBm

RX sensitivity: -27dBm

Overload optical power: -3dBm(EPON) or -8dBm(GPON)

Transmission distance: 20KM

Wavelength: TX 1310nm, RX1490nm

User interface

1*GE, Auto-negotiation,RJ45 ports

1*POTS RJ11 Connector

○ Function Data

Management

OAM/OMCI, Telnet, WEB, TR069

Support full management of HGU functions by VSOL OLT

Multicast

Support IGMP v1/v2/v3

Support IGMP Proxy and MLD Proxy

Support IGMP Snooping and MLD Snooping

Internet connection Support Bridge, Route and Bridge/Route mixed mode

VLAN

Support VLAN tag mode

Support VLAN trunk mode

Support VLAN translation

Data Service Functions

Full speed non-blocking switching

2K MAC address table

4K VLAN ID

Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc

Support auto polarity detection of Ethernet ports (AUTO MDIX)

Integrated IEEE802.1p QoS with four level priority queues

Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy

VoIP

SIP and IMS SIP

Codec∶G.711/G.723/G.726/G.729 codec

Echo cancellation,VAD/CNG,DTMF

T.30/T.38 FAX

Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

Line testing according to GR-909

QoS

Support 4 queues

Support SP and WRR

Support 802.1P and DSCP

L3

Support IPv4, IPv6 and IPv4/IPv6 dual stack

Support DHCP/PPPOE/Static

Support Static route

Support DHCP Server

Support NAT/DMZ/DDNS

Support Virtual Server

Security

Support Firewall

Support Mac filter Based on MAC or URL

Support ACL
