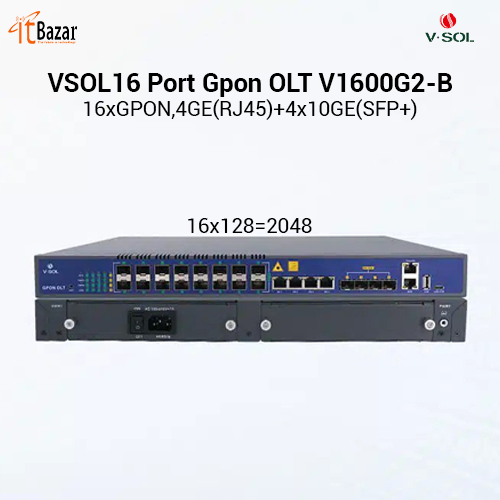

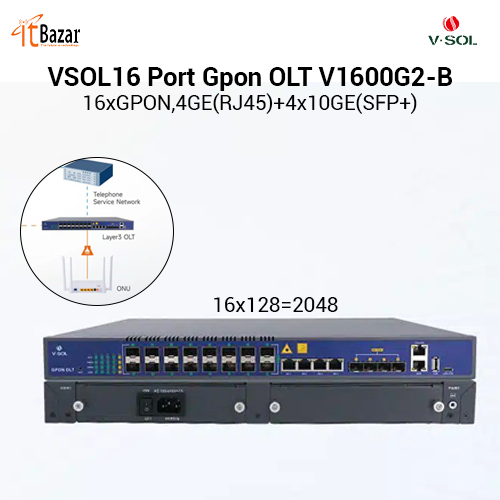

VSOL 16 PORT GPON OLT V1600G2-B

Model: V1600G2-B

Spec: 16*GPON,4GE(RJ45)+4*10GE(SFP+)

Dual power modules available in DC/AC，support hot-swap

Highlights

• Compact design, meets various application

scenarios

Supports the deployment in diverse scenarios including

low density areas, remote areas, sparsely-populated

areas and industry parks. Supports FTTM and sharing site/rack with wireless base

stations. • Small size and lightweight, easier to delivery

and install

Small size and lightweight, easy to transport and install. Supports multiple installation modes, like limited room

space,basement, low-voltage room and small rack or cabinet

• Carrier-class security protection, support dynamicrouting protocol RIP&OSPF, ensure the safe operationof network

Supports uplink redundancy protection including LACPSTP,RSTPand MSTP, and support RIP&OSPF protocol. Supports link

protection. • Lower TCO

Dramatically saves on investment fees in trunk fibers, pipeengineering, and facilities. Effectively reduce CapEx and OpEx

Technical Specifications

Ordering Information:

GPON Function

• Tcont DBA

• Gemport traffic

• In compliant with ITU-T984.x standard

• Up to 20KM transmission Distance

• Support data encryption, multi-cast, port

VLAN, separation, RSTP, etc

• Support ONT auto-discovery/link

detection/remote upgrade of software

• Support VLAN division anduser separation to avoid broadcast storm• Support power-off alarmfunction, easyfor link problemdetection• Support broadcasting stormresistancefunction

• Support port isolation betweendifferentports

• Support ACL and SNMPtoconfiguredata packet filter flexibly

• Specialized design for systembreakdown prevention to maintainstable system• Support RSTP

Dimension (L*W*H)

• 442mm*319mm*43.6mmWeight

• Net weight of single power: 4.80kg• Gross weight of single power: 6.40kgPower Consumption• 85W

Working Temperature• -20°C ~+60°C

Storage Temperature• -40~+70°C

Relative Humidity

• 5~95% (non-condensing)

Management Function

• SNMP,Telnet,CLI,WEB,SSH v2; • Fan Group Control • Port Status monitoring and configuration management • Online ONTconfiguration and management • User management • Alarm management

Layer2 Switch

• 32K Mac address

• Support 4096 VLANs

• Support port VLAN

• Support VLAN tag/Un-tag, VLAN

transparent transmission

• Support VLAN translation and QinQ

• Support storm control based on port • Support port isolation

• Support port rate limitation

• Support 802.1D and 802.1W

• Support static LACP,Dynamic LACP

• QoS based on port, VID, TOS and MAC

address

• Access control list • IEEE802.x flowcontrol • Port stability statistic and monitoring

DHCP

• DHCP server,DHCP relay,DHCP snooping

• DHCP option82

Layer 3 Route

• ARP proxy

• 4096 hardware Host Routes,512 hardware Subnet Routes

• Support Radius,Tacacs+

• Support IP source guard

• Support static route ,dynamic route RIP

v1/v2,RIPng and OSPF v2/v3;

IPv6

• Support NDP; • Support IPv6 Ping,IPv6 Telnet,IPv6 routing; • Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol

type, etc; • Support MLD v1/v2 snooping(Multicast

Listener Discovery snooping)

Item V1600G2-B

Chassis Rack 1U 19Inch Standard Box

Uplink Port

QTY 8

RJ45(GE) 4

SFP(GE)/SFP+(10GE) 4

GPON Port

QTY 16

Physical Interface SFP Slots

Max splitting ratio 1:128

Management Ports

1*10/100/1000BASE-T out-band port, 1*CONSOLEport, 1*USB2.0, 1*Type-C USB (for console)

Backplane Bandwidth (Gbps) 208

Port Forwarding Rate(Mpps) 124.992

PON Port Specification

Transmission Distance 20KM

GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength TX 1490nm, RX 1310nm

Connector SC/UPC

Fiber Type 9/125μm SMF

Supported PON module level Class B+, C, C+, C++, C+++ Power Supply

AC Working Voltage Range: 100~240V, Rated Voltage: 110V/220VDC Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60VManagement Mode EMS, WEB, SNMP, Telnet , CLI
