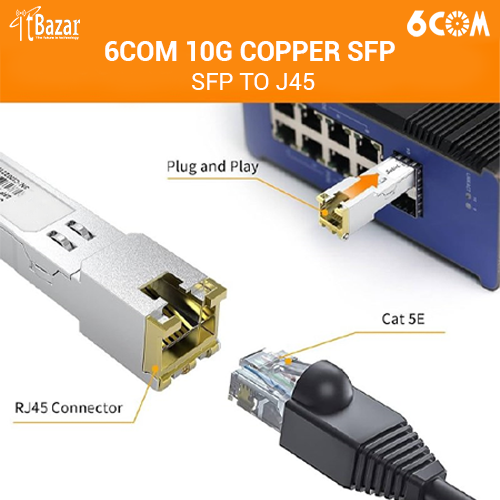

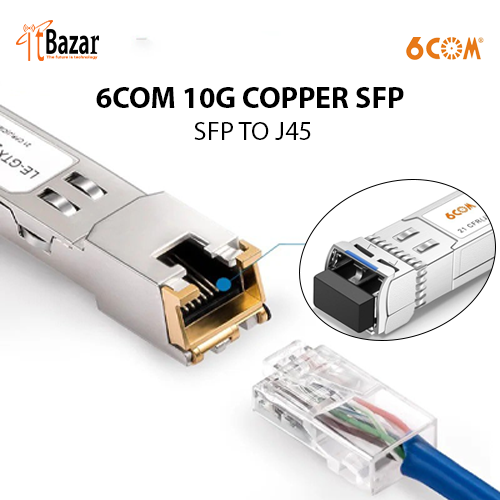

6COM 10G COPPER SFP ,SFP TO Rj45
Inhouse product
6COM 10G COPPER SFP ,SFP TO J45
Description
The 6COM 6C-SFP-10G-T copper transceiver module is a high performance integrated duplex data link for
bi-directional communication over copper cable. It is specifically designed for high speed communication
links that require 10Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10Gb/s
communication over this type of media.
Features
Supports Links up to 30m using Cat 6a/7 Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3az Compliant
Low Power Consumption (2.5W max @ 30m)
Fast Retrain EMI Cancellation Algorithm
Low EMI Emissions
I2C 2 Wire Serial Interface for Serial Id and Phy Registers
Auto-negotiates with other 10GBase-T-NC PHYs
Automatic Detection and Correction of Wiring and Polarity Swaps
Robust Die Cast Housing
Bail Latch Style ejector mechanism
Unshielded and Shielded cable support
