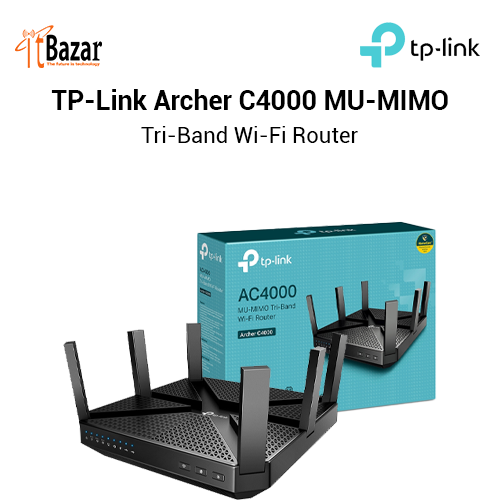

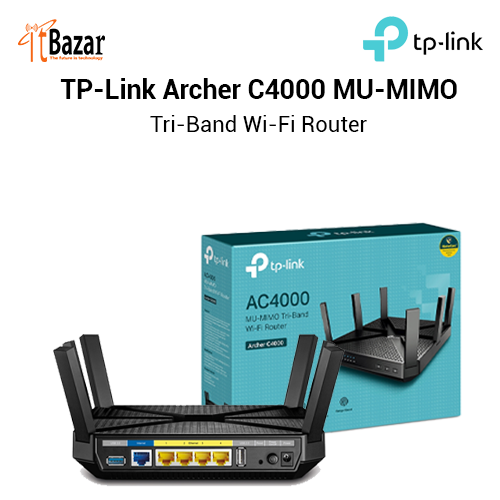

TPLink Archer C4000 AC4000 MU-MIMO Tri-Band Wi-Fi

Archer C4000

AC4000 MU-MIMO Tri-Band Wi-Fi Router

Ultra-fast Processing--An 1.8Ghz 64-bit quad-core CPU handles all

4000 Mbps Wi-Fi speed--1625 Mbps on both 5G bands and 750Mbps on 2.4G band

No more buffering--MU-MIMO and Tri-Band enable the router to connect more devices at the same time

Far-reaching Range--RangeBoost technology boosts Wi-Fi to farther coverage and Beamforming focuses signal to connect devices

Secure your network--HomeCare protects your network from malicious attack and you can manage who and how to access the network

Easy Setup--With intuitive Phone UI or Tether app, your network is ready to go within a minute

Gigabit Wired Speeds--1 WAN and 4 LAN gigabit ports bring wired speeds to the maximum and Link Aggregation even double it to 2Gbps.

SECURITY

Access Control Device-based whitelist / blacklist

Wi-Fi Security Open

WEP

WPA-PSK

WPA2-PSK

Firewall Features Malicious Content Filter

Intrusion Prevention System

Infected Device Quarantine

Attack Defense Malicious Content Filter

Intrusion Prevention System

Infected Device Quarantine

HARDWARE FEATURES

Processor 1.8 GHz quad-core CPU and three co-processors

Memory 512 MB

Standards and Protocols 802.11a/b/g/n/ac, 802.3ab

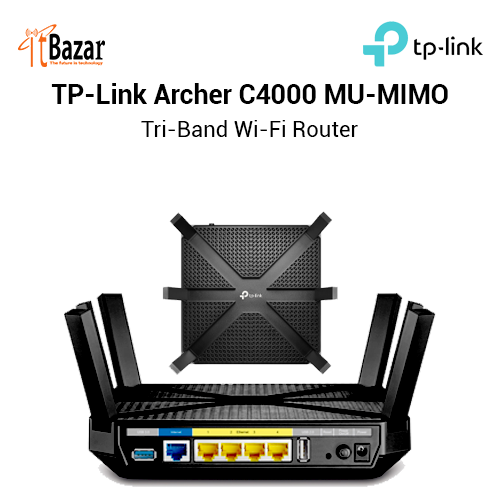

Ports 1x GE WAN

4x GE LAN

1x USB 2.0

1x USB 3.0

Button 1x Power

1x Wi-Fi On/Off

1x WPS

1x Reset

1x LED On/Off

LED Panel 1x Power

1x 2.4 GHz

1x 5 GHz-1

1x 5 GHz-2

1x Ethernet

1x Internet

1x WPS

1x USB 2.0

1x USB 3.0

Weight 1.79 lb

0.81 kg

Dimensions ( W x D x H ) 7.9 x 7.9 x 1.5 in

Dimensions 200 x 200 x 39 mm

Antenna 6 external antennas

Wi-Fi Chipset Features MU-MIMO

Beamforming

Airtime Fairness

RangeBoost

NitroQAM

WIRELESS FEATURES

Signal Rate 750Mbps @ 2.4GHz

1625Mbps @ 5GHz

1625Mbps @ 5GHz

SOFTWARE FEATURES

System Tools Time Settings

Diagnostics

Fw OTA Upgrade

Config backup/restore

Administration

Syslog

Statistics

LED Control

Basic Function Network Map (Internet Status / Client List / Speedtest)

Internet Settings

Wireless Settings

USB Sharing Settings (USB Storage Sharing / FTP Server / Print Server / Media Server)

HomeCare (Parental Control / Antivirus / QoS)

Guest Network Settings

TP-Link Cloud Settings

Multiple Languages

Protocols IPv4, IPv6

Advanced Functions Working Mode (Router Mode or AP Mode)

Wireless Schedule

Time Machine

TP-Link DDNS

Parental Controls/Antivirus/QoS

IPv6

VPN Server (OpenVPN and PPTP Servers)

NAT Forwarding (DMZ / UPnP)

Link Aggregation (WAN / LAN)

Airtime Fairness

Smart Connect

OTHERS

Smartphone/Tablet Requirements Andriod 4.1 or higher

iOS 8 or higher

Certifications FCC

CE

CE DFS

Power Supply 100-240V 50/60Hz

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
