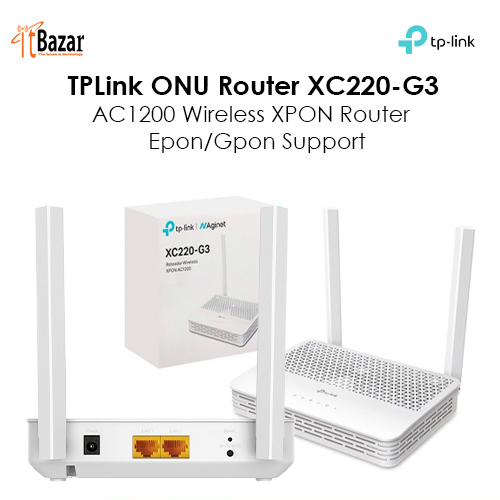

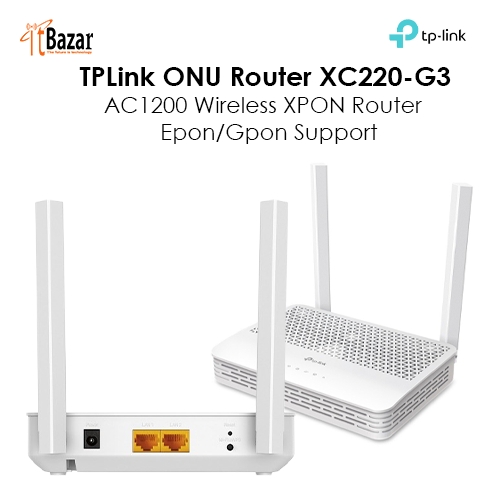

TPLink ONU Router XC220-G3 AC1200 Wireless XPON Router  Epon/Gpon Support

AC1200 Wireless XPON Router

Superfast Dual Band WiFi: Up to 1.2 Gbps WiFi speeds, 300 Mbps on 2.4GHz, 867 Mbps on 5GHz*

XPON Dual Modes: Supports GPON and EPON dual modes for flexible fiber internet access.

EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.

Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.

Enhanced Security: Protect your network with firewalls and the latest WPA3 encryption.**

Full Gigabit Ports: Up to 10× faster than standard Ethernet, deliver lightning-fast wired performance.

Compatct Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.

Easy Setup: Set up your network in minutes with the powerful Aginet app.

Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported.

HARDWARE FEATURES

Interface 2 10/100/1000 Mbps RJ45 LAN Ports

1 PON Port

Button WPS/Wi-Fi Button, RESET Button

External Power Supply 12V/1.0A

Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)

Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)§

Antenna 2 External Dual Band Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency 2.4 GHz and 5 GHz

Signal Rate 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz

Transmit Power 2.4 GHz: 26 dBm(EIRP), 5GHz: 28dBm (EIRP)

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security WPA/WPA2/WPA3 encryptions

Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule

Mesh Technology EasyMesh Compatible, and support 802.11k/v/r

SOFTWARE FEATURES

Quality of Service Hardware QoS

Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death”

Management Local management: WebGUI management, Aginet app management

Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-181,TR-111,TR-143

Cloud management: TP-Link Aginet Unified Cloud (TAUC)

DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS DynDns, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec Pass-through

Protocols IPv4, IPv6

Advanced Functions Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3

OTHERS

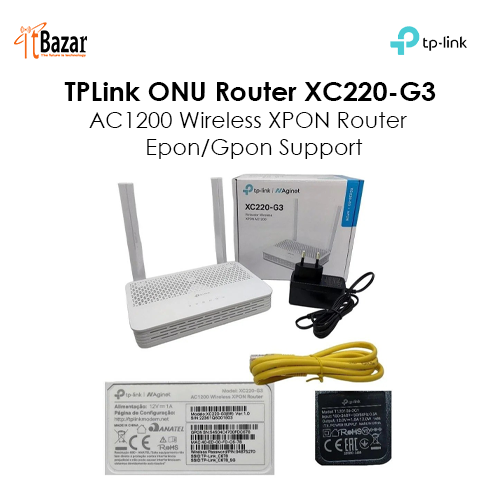

Package Contents AC1200 Wireless XPON Router XC220-G3

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Subscription with an internet service provider (for internet access)

Environment Operating Temperature: 0℃–40℃ (32℉–104℉)

Storage Temperature: -40℃–60℃ (-40℉–140℉)

Operating Humidity: 10%–90% non-condensing

Storage Humidity: 5%–90% non-condensing
