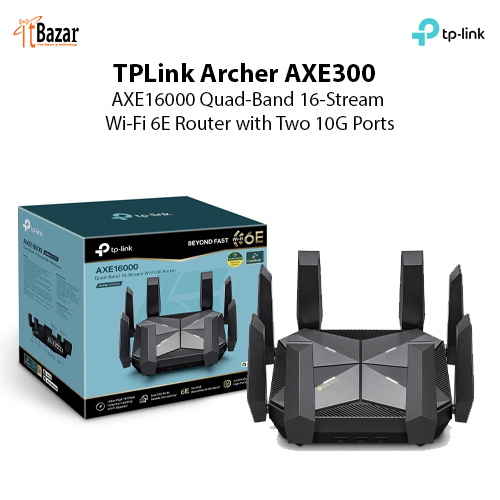

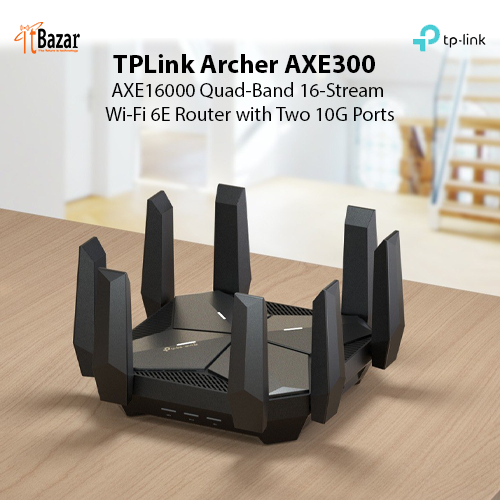

TPLink Archer AXE300 AXE16000 Quad-Band 16-Stream WiFi6e 10G Port

AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports

Our Fastest Wi-Fi 6E and Wi-Fi 6 Router to Date: Up to 15.6 Gbps Quad-Band WiFi for faster browsing, streaming, and downloading, all at the same time.1

WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.

Two 10G Ports: 1× 10 Gbps WAN/LAN port + 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 2.5 Gbps WAN/LAN port + 4× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.§

Powerful CPU: 2.0 GHz quad-core processor and 1 GB RAM ensure fast transmission speeds and smooth operation of numerous devices and applications.

Maximized Coverage: 8× high-performance dual-band antennas along with Beamforming boost WiFi signals throughout your home.

More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.1

TP-Link HomeShield: Enhanced security defends against the latest cyber threats.5

WIRELESS

Standards • IEEE 802.11ax 6 GHz,

• IEEE 802.11ax/ac/n/a 5 GHz,

• IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AXE16000

• 6 GHz: 4804 Mbps (802.11ax)

• 5 GHz-1: 4804 Mbps (802.11ax)

• 5 GHz-2: 4804 Mbps (802.11ax)

• 2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range 4 Bedroom Houses

8× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity Very High

Quad-Band

Allocate devices to different bands for optimal performance

4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

16 Streams

Connect your devices to more bandwidth

Working Modes • Router Mode

• Access Point Mode

SECURITY

Network Security • SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network • 1× 6 GHz Guest Network

• 1× 5 GHz-1 Guest Network

• 1× 5 GHz-2 Guest Network

• 1× 2.4 GHz Guest Network

VPN Server • OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

VPN Client • Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

WiFi Encryption • WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor 2.0 GHz Quad-Core CPU

Ethernet Ports • 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port§

• 1× 10 Gbps WAN/LAN Port§

• 1× 2.5 Gbps WAN/LAN Port§

• 4× 1 Gbps LAN Ports

USB Support 1× USB 3.0 Port

• Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

• Supported Functions:

FTP Server

Media Server

Samba Server

Buttons • Power On/Off Button

• Wi-Fi On/Off Button

• LED On/Off Button

• WPS Button

• Reset Button

Power 12 V ⎓ 5 A

SOFTWARE

Protocols • IPv4

• IPv6

Service Kits HomeShield

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types • Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of Service QoS by Device

Cloud Service • Auto Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding • Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV • IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP • Address Reservation

• DHCP Client List

• Server

DDNS • TP-Link

• NO-IP

• DynDNS

Management • Tether App

• Webpage

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

TEST DATA

WiFi Transmission Power FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz)

WiFi Reception Sensitivity 2.4 GHz:

11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -95dBm, 11ax HE40 MCS11: -64dBm

5 GHz-1:

11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -62dBm

11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -60dBm

11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -57dBm

11ax HE160 MCS0: -82dBm, 11ax HE160 MCS11: -52dBm

5 GHz-2:

11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm

11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm

11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -59dBm

11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

6 GHz:

11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm

11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm

11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -58dBm

11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

PHYSICAL

Dimensions (W×D×H) 9.1 × 9.1 × 2.7 in

(232 × 232 × 68 mm)

Package Contents • Wi-Fi Router Archer AXE300

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
